VDTA-V 89

Variomatic Double Tamper Screed with Tamper Stroke Adjustment and Additional Articulation

Pro: ABG 8820 | ABG 7820 | ABG 6820


3 m


9 m


2 Tampers


Vibrace

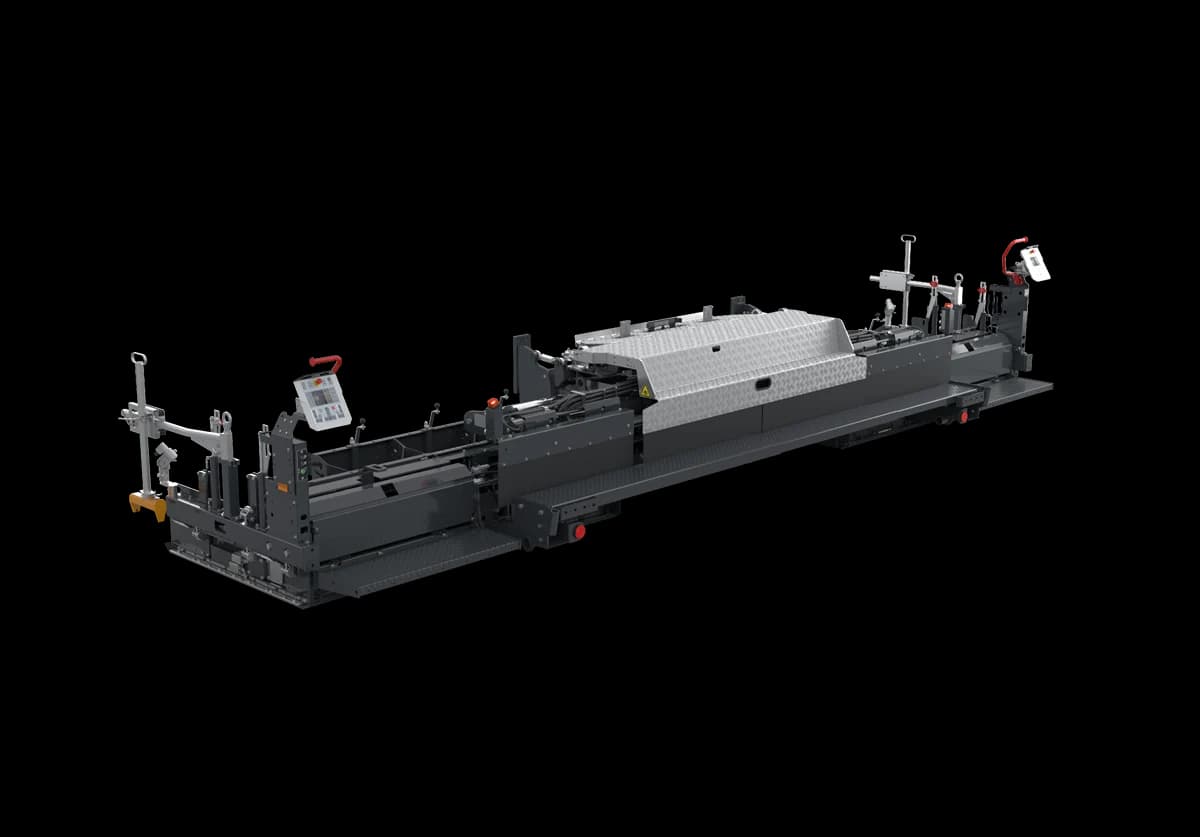

Vario_Screed-VDTA-V_89-1200x837
Máte zájem o cenovou nabídku?

ABG's Innovative High-Compaction Technology

Screed features

Click the points on the screed to see what each feature does.

Screed-Value-selling(HotSpots)-S-ID9-VDTA-V_89

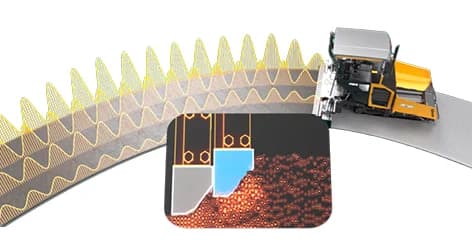

Continuously Adjustable Pre-Compaction
Continuously variable adjustment of the front tamper stroke from 0.5 mm to 10 mm – even during paving at the touch of a button. This unique feature allows individual adjustment of each screed section, enabling the perfect match of compaction energy to layer thickness, paving width, or curve radius for optimum paving results.
Screed-Value-selling(HotSpots)-S-ID1-VDTA-V_89

Specifikace

Standardní výbava

  • Electrical Screed Heating

  • Additional Articulation for Screed Extensions (+-10%)

  • Hydraulic Height Adjustment of Screed Extensions

  • Quick Coupling System for Screed Extensions

  • Maintenance-Free Tamper and Vibration Bearings

  • Integrated Screed Width Measurement with Display in the MCU

  • Integrated Crown Profile Sensor with Display in the SCU

  • Crown Profile Adjustment via the SCU

Volitelné vybavení

  • Additional Storage Boxes for End Gates

  • Foldable End Gates

  • Handset Crown Control

  • Basic Screed Reduction Plates - 0,25 m per side

  • Screed Heating Diagnostics with SCU Display

  • Heated Manual End Gates

  • Hydraulic End Gates with extra working Lights and USB Socket

  • Walkway Variations

Jednotky

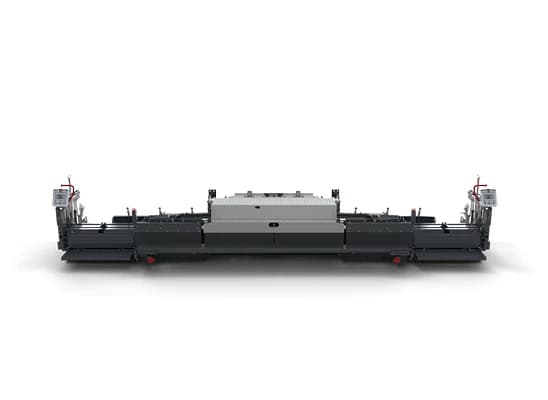

VDTA-V 89
VDTA-V 89
Ammann File Placeholder
Porovnat
Ammann File Placeholder
Porovnat

Paving Widths

VDTA-V 89--
Basic width3 m--
Hydraulic Adjusting range3.0 - 6.0 m--
Max. paving width9 m--
Min. paving width with reduction kit2.5 m--
Available screed extension sizes0.75, 1.25 m--
Depth of base plate350 mm--

Profile Adjustments

Compaction Systems

Heating System

Weights

Play

To watch YouTube videos you are required to accept the Privacy Policy of YouTube and to allow YouTube in your Cookie Preferences.

Screed Configurator App

This tool helps you plan your paver screed configurations and assists technicians with on-site screed assembly. Follow the simple 4-step process to select your paver, choose a screed, configure the paving width, and generate a complete parts list with assembly instructions.
