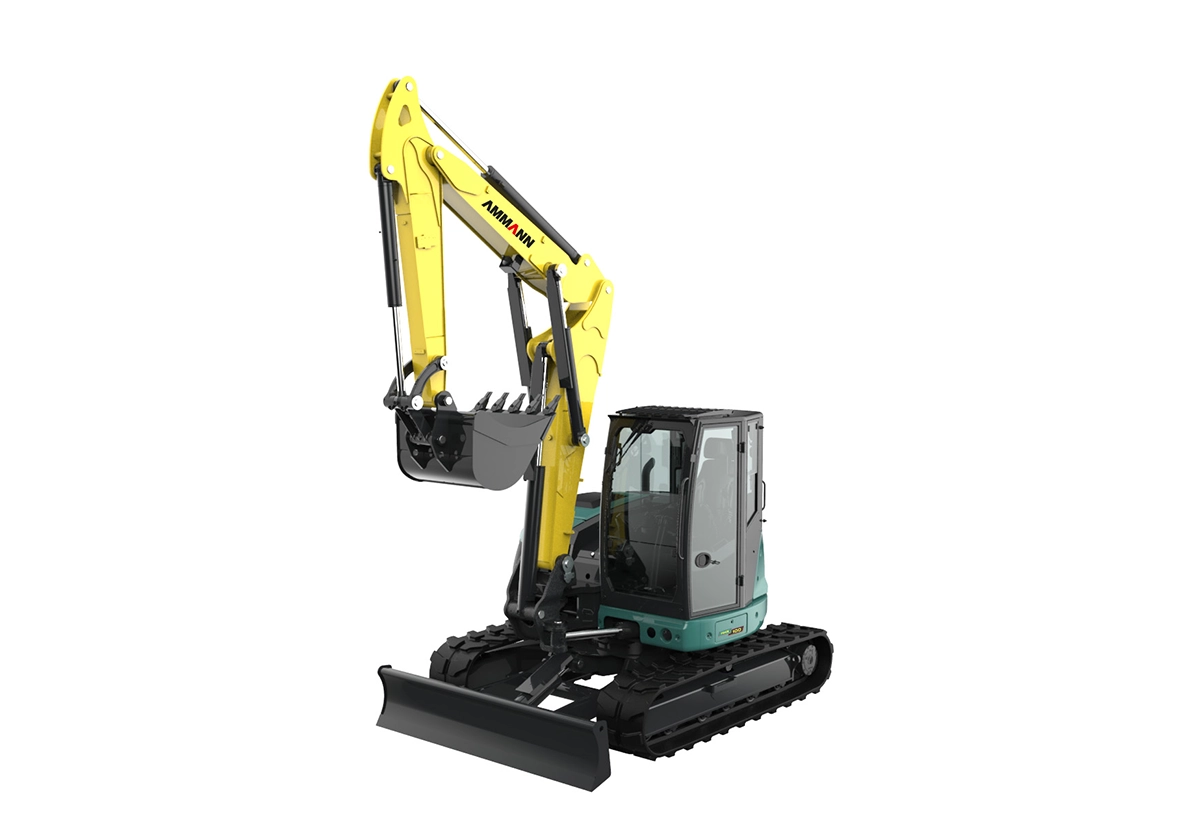

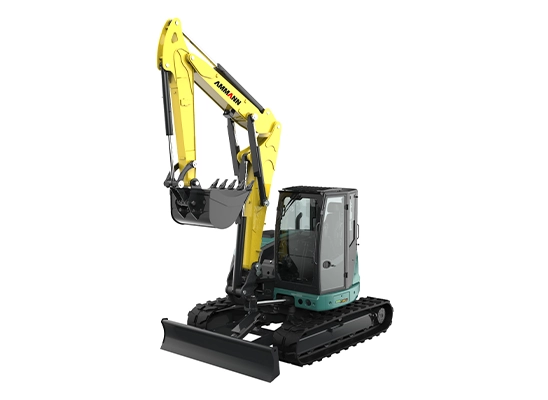

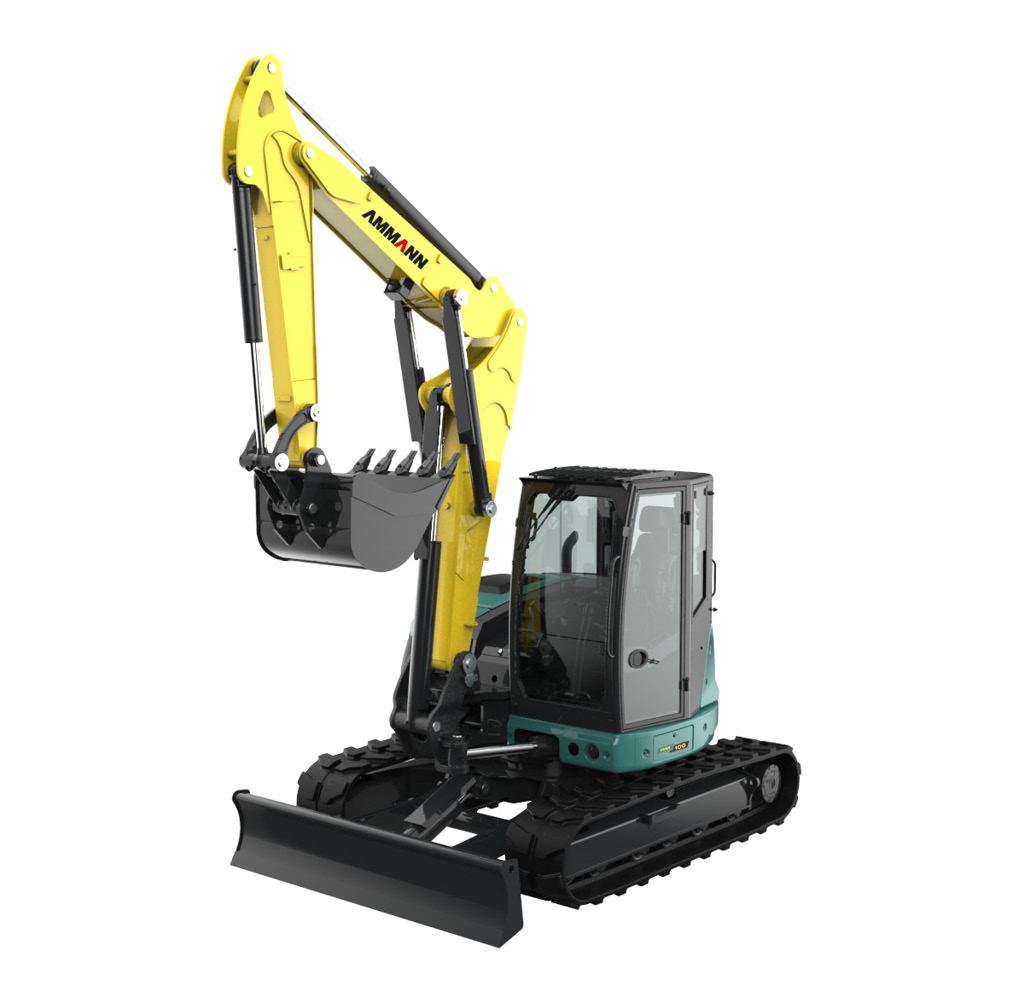

AMX 100
Midi Excavator
9900 kg
2320 mm
4570 (4920) mm
The best compromise between power and compactness
Midi Excavator with Zero Tail design
The AMX 100 midi excavator with its small turning radius profile is characterised by its compactness and its variable angle boom.
Excellent excavation depth
Specifications
Standard
Yanmar turbo engine, 73 HP power, Stage V, equipped with a diesel particulate filter (DPF)
Rubber tracks
AUX1 (hydraulic hammer), AUX 2 and AUX 3 and direct return flow to the hydraulic oil tank
2 safety valves, regular general checks and calculation charts
Cab with automatic air conditioning and automatic accelerator, car radio and multi-function control display
Ground-level fuel filler pump
Travel in two automatic modes
24-month warranty for the whole machine and 60-month warranty for the welded structure
Options
All types of mechanical or hydraulic quick connect fittings / buckets
Geolocation system
Additional working lights
Additional counterweights (inside and outside)
3 safety valves
Customisable paint
Rear-view camera
Panolin biodegradable hydraulic oil
GENERAL
| AMX 100 | - | - | |
|---|---|---|---|
| Operating weight with cab and rubber tracks | 9900 kg | - | - |
| Travel speed | 0 - 2.6 km/h | - | - |
| Turret rotation speed | 10 t/min | - | - |
| Type of equipment | Articulé (volée variable) + orientation de pied de flèche | - | - |
| Replaceable pins and bushings | Yes | - | - |
| Boom foot and bucket links in cast steel | Yes | - | - |
| Tilting operator cab | Yes | - | - |
DIMENSIONS
ENGINE
HYDRAULIC SYSTEM
PERFORMANCE
CAPACITIES / VOLUMES
CONTROLS
