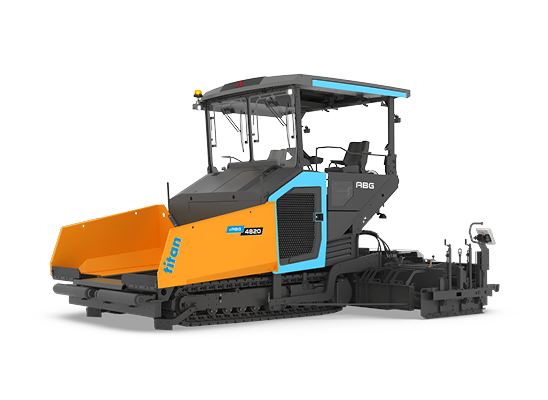

eABG 4820
The largest electric-drive paver on the market
e-Drive
2.5 m
6.5 m
500 t/h
eABG 4820 – Proven, Powerful & Available Today
No Emissions, High Productivity
The eABG 4820 combines the sustainability of an electric-drive paver with the production capabilities of a traditional machine. It recently recorded the most tonnes of asphalt placed by an electric paver in a day.
Reduced CO₂
Total CO₂ machine well-to-wheel emissions are reduced by about 70%. The paver itself is emissions-free, but depending on country some CO₂ is created during generation of electricity.
Specifications
Standard
Penta High Voltage sytem with 270 kWh Traction Battery Capacity
Electronic drive control
Lifetime lubricated crawler track rollers
Forged and hardened crawler track links
Automatic track tensioner
Bolt on rubber pads
Large truck push rollers with 160 mm Ø
Four individual hydrostatic drives for conveyors and augers
Options
Individual operating hopper wings
Hydraulically operated front apron
Reversible conveyor
Hydraulic auger height adjustment
Proportional Ultrasonic Sensor auger control
Central lubrication
Light truck push rollers with 110 mm Ø
Protective half shells
ENGINE
| eABG 4820 | - | - | |
|---|---|---|---|
| Emission stage | e-Drive | - | - |
| Manufacturer | Penta | - | - |
| Engine Model | PMSM | - | - |
| Nominal speed | 2 600 / 3 000 RPM | - | - |
| Power output ISO | 99 kW | - | - |
| Electrical system | 600 V | - | - |
CAPACITY & PERFORMANCE
