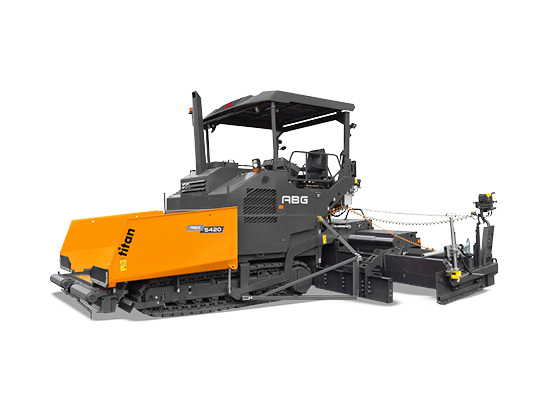

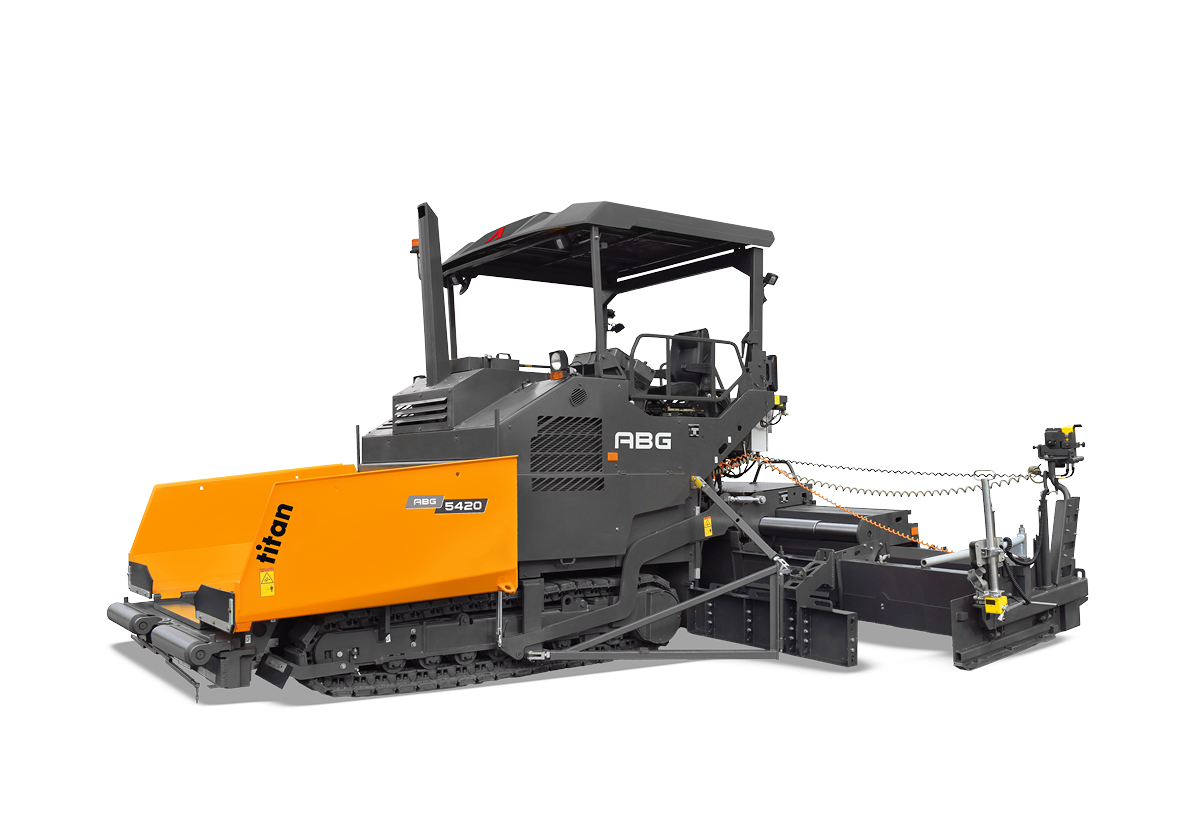

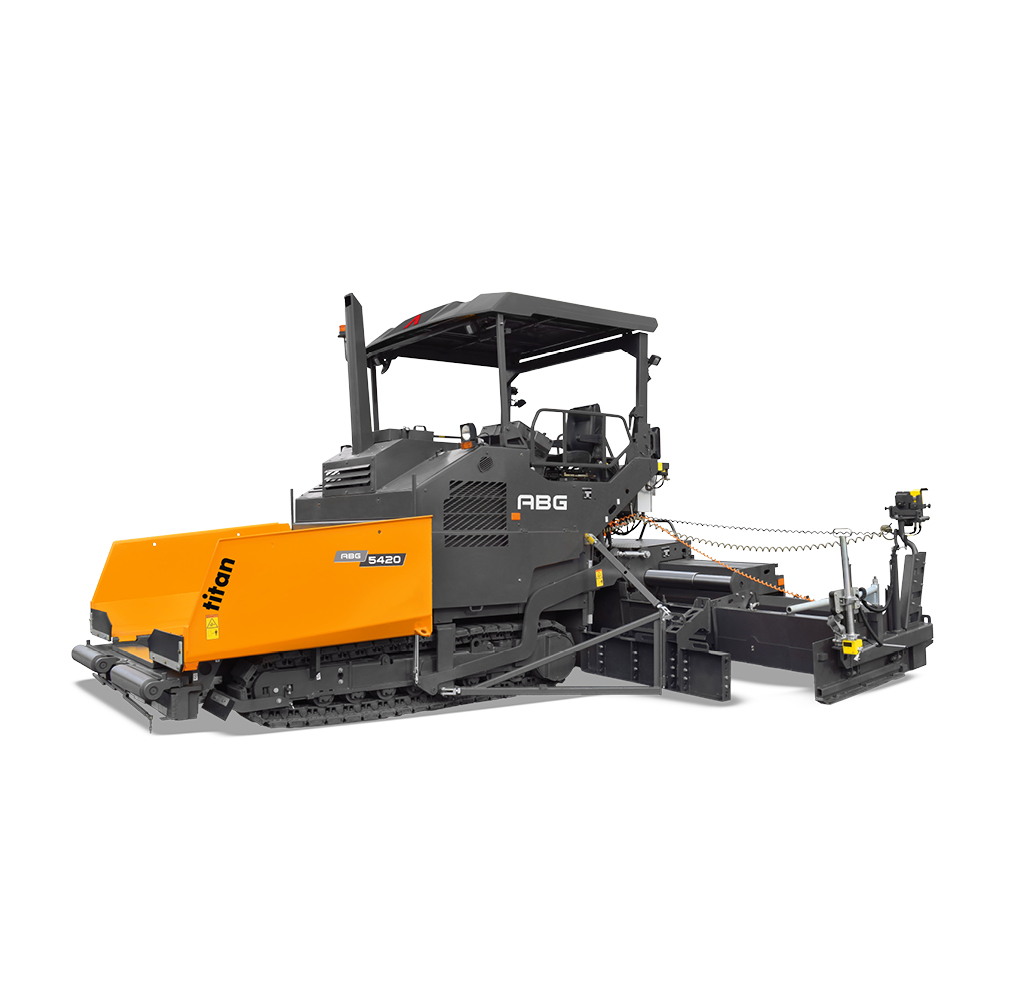

ABG 5420
Tracked Paver
U.S. EPA Tier 3
2.5 m
7.5 m
600 t/h
Compact paver. Big performance.
Why buyers choose it
High traction
Specifications
Standard
DEUTZ (VOLVO) DIESEL ENGINE, EPA TIER 3
Electronic drive control

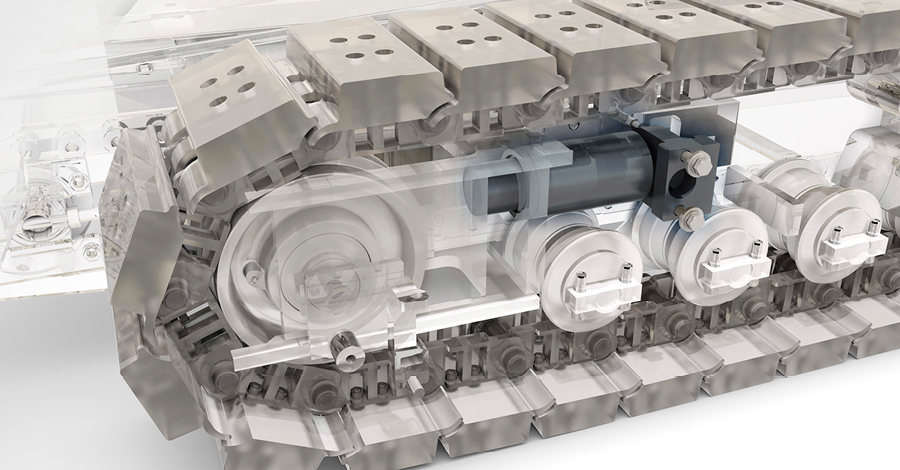

Lifetime lubricated crawler track rollers
Forged and hardened crawler track links
Automatic track tensioner
Heavy push rollers
Auger speed control ON/OFF
Four individual hydrostatic drives for conveyors and augers
Options
Medium duty Conveyor drive
Heavy duty Conveyor Kit (HD conveyor Chain, HD Conveyor Guard plates available in flat & Angular configuration)
Levelling kit 2 Sonic - 1 Slope
Levelling kit 1 Sonic - 1 Slope
Levelling kit 2 Rotary - 1 Slope
Levelling kit 1 Rotary - 1 Slope
Foldable Roof FRP Extension (Butterfly Sunshade)
Warning beacons led
ENGINE
| ABG 5420 | - | - | |
|---|---|---|---|
| Emission stage | U.S. EPA Tier 3 | - | - |
| Manufacturer | Deutz (Volvo) | - | - |
| Engine Model | D4E | - | - |
| Nominal speed | 2200 RPM | - | - |
| Power output ISO | 96 kW | - | - |
| Electrical system | 24 V | - | - |
| Fuel tank capacity | 230 L | - | - |
WEIGHT & OPERATING CHARACTERISTICS
CAPACITY & PERFORMANCE
MATERIAL FEEDING SYSTEM
