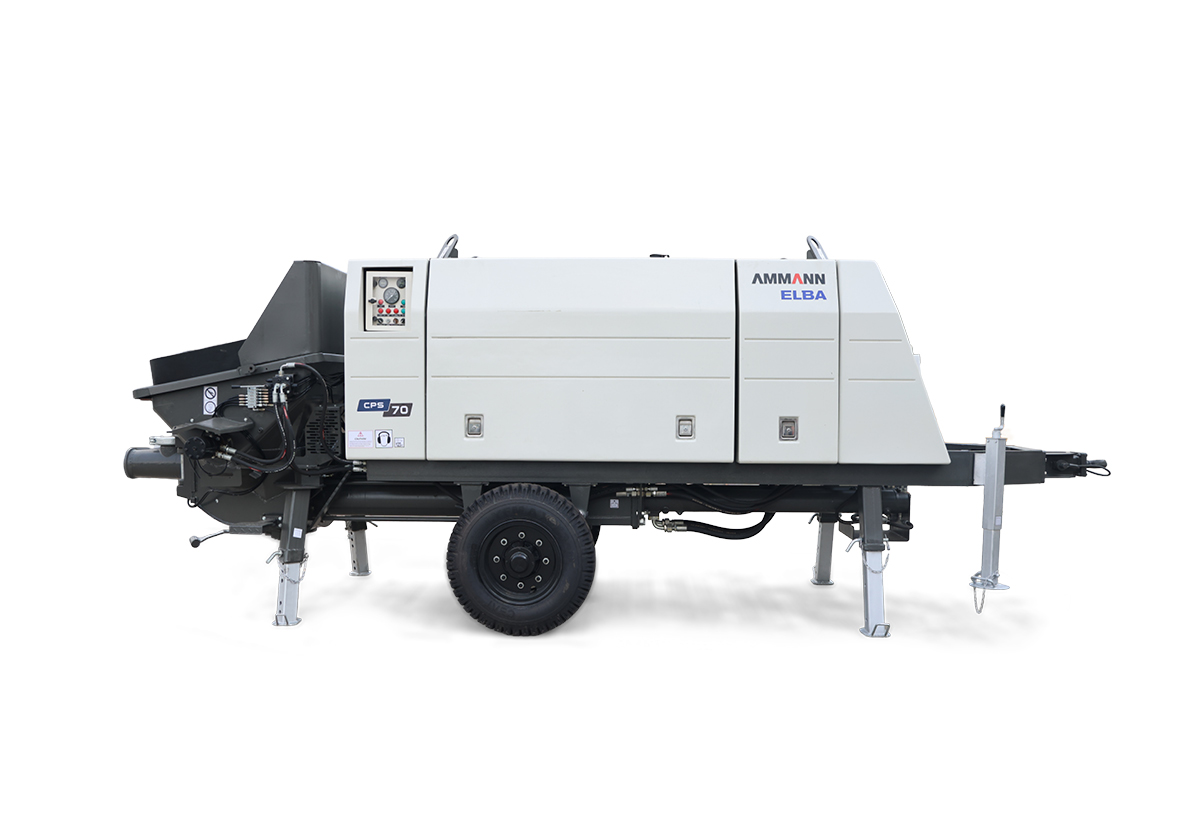

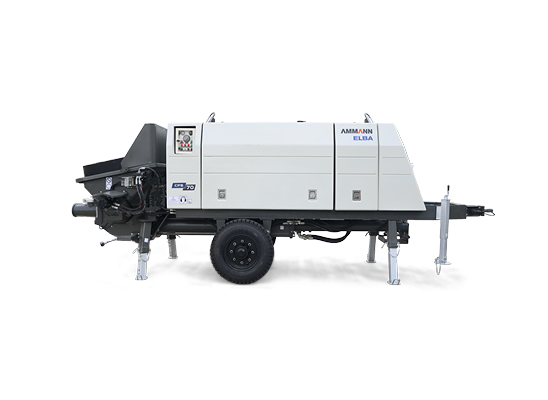

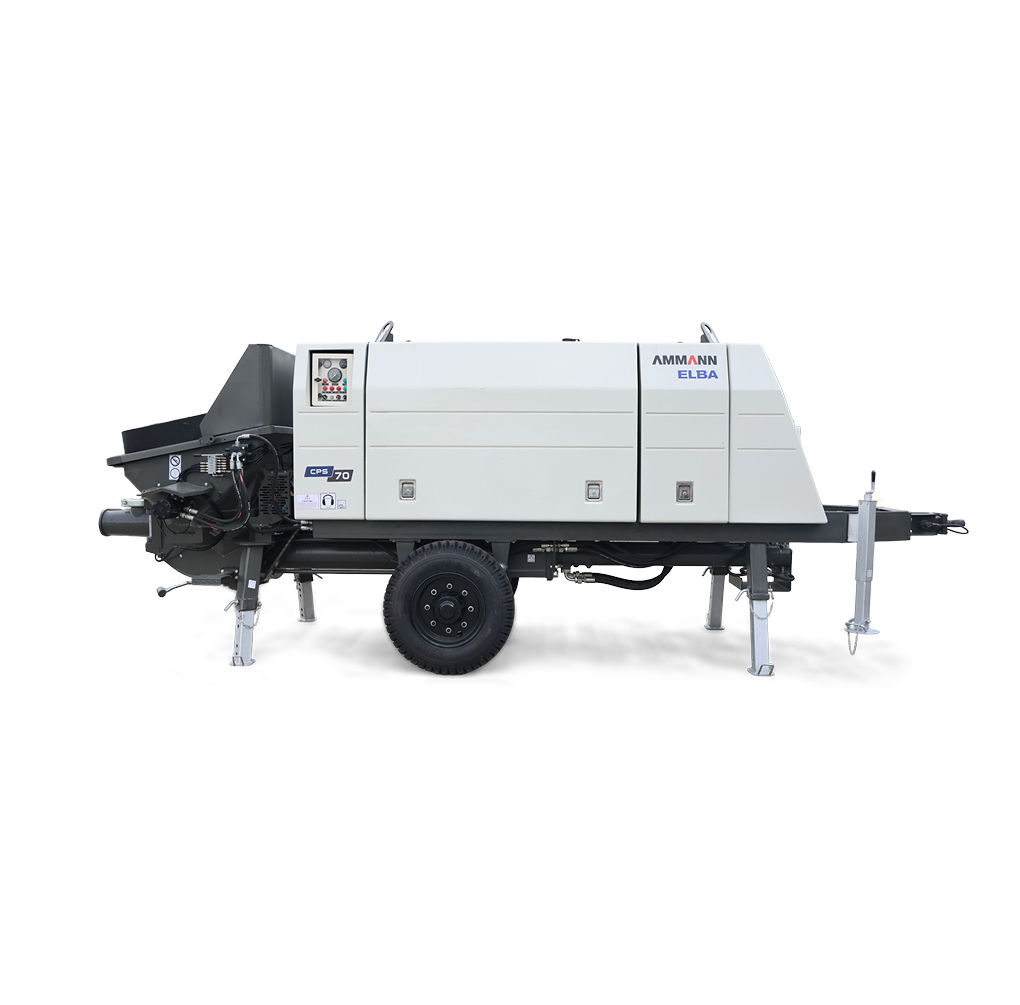

CPS 70
Stationary Concrete Pump
72 m³/h
97 bar
600 L
Bigger capacity. Built to last.
Why buyers choose it
- High output: Powerful pumping unit delivers reliable concrete flow for large projects.
- Durability built in: Fewer strokes per cubic metre extend service life.
- Operator-focused: Safety guards, canopy locks, and footrests for ease of use.
- Low downtime: Auto greasing and quick service access streamline maintenance.
- Versatile applications: Standard wear parts and optional accessories fit diverse jobsite needs.
Specifications
Standard
Tungsten Carbide Wear Parts
Foot rest for maintenance
Rubber bead on concrete hopper
DN 150 to DN 125 Reducer Pipe
Pipeline Cleaning Ball ( DN 150-Hard)
Hose Clamp Cup-tension type (DN-150)
O-Rings and Toolkit
Centralised Lubrication System (CLS)
Options
DN 125 Seamless pipelines
90, 60, 45 degree pipe bends
Auto greasing system (12 V)
4 meter End hose with cleaning ball
Cleaning Pig
Air Compressor for Cleaning
Pumping
| CPS 70 | - | |
|---|---|---|
| Max theoretical output | 72 m³/h | - |
| Max concrete pressure | 97 bar | - |
| Delivery cylinder diameter | 200 mm | - |
| Delivery cylinder stroke length | 1400 mm | - |
| Pumping cycles | 27 strokes/min | - |
Hopper
Drive
Dimensions
Weight
After Sales & Services
No matter where you are, Ammann-trained technicians and parts are nearby. Ammann dealers provide well-trained service technicians who can help you, whether it’s an emergency or preventive maintenance. The vast Ammann network ensures there is a nearby technician who understands your language and your technical needs. Parts availability and ease of ordering are always Ammann priorities.
