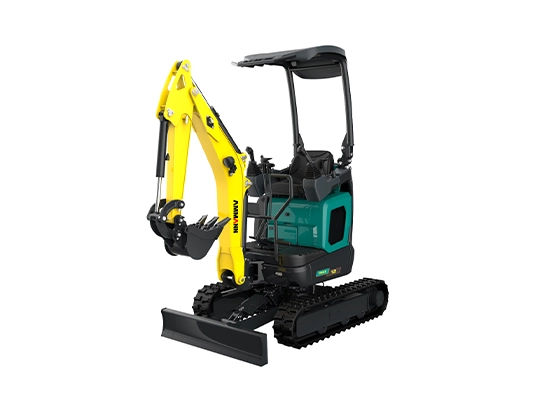

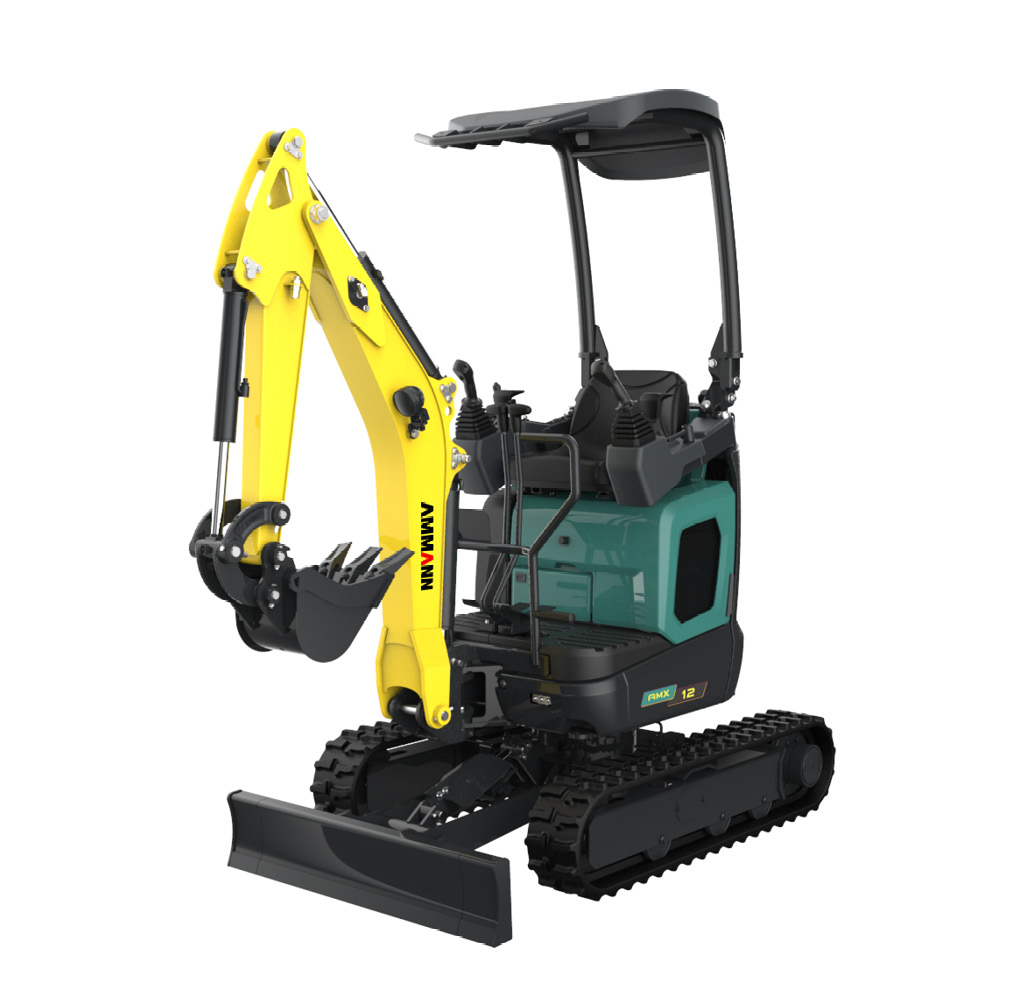

AMX 12
Mini Excavator
1185 kg
790 mm
1860 (1980) mm
The most compact Ammann mini excavator in its category
Mini Excavator with Zero Tail design
The Ammann AMX 12 mini excavator is extremely compact yet remarkably powerful for a machine in the 1–1.5 t category.
Excellent excavation depth
Specifications
Standard
Kubota engine 13.7 HP Stage V
Width hydraulically expandable from 790 to 1050 mm
Additional hydraulic circuit (AUX 1 – PTO 1) for hydraulic hammer
Two-post protective bracket
24-month warranty for the whole machine and 60-month warranty for the welded structure
Options
All types of mechanical quick connect fittings / buckets
Additional hydraulic circuit AUX 2
Variable-displacement hydraulic pump
Customisable paint according to RAL colour chart
Geolocation system
Panolin biodegradable hydraulic oil
GENERAL
| AMX 12 | - | - | |
|---|---|---|---|
| Operating Weight | 1185 kg | - | - |
| Travel speed | 1.8 - 3.8 km/h | - | - |
| Turret rotation speed | 9.5 t/min | - | - |
| Type of equipment | Monobloc + boom foot steering | - | - |
| Replaceable pins and bushings | Yes | - | - |
| Boom foot and bucket links in cast steel | Yes | - | - |
DIMENSIONS
ENGINE
HYDRAULIC SYSTEM
PERFORMANCE
CAPACITIES / VOLUMES
CONTROLS
After Sales & Services
No matter where you are, Ammann-trained technicians and parts are nearby. Ammann dealers provide well-trained service technicians who can help you, whether it’s an emergency or preventive maintenance. The vast Ammann network ensures there is a nearby technician who understands your language and your technical needs. Parts availability and ease of ordering are always Ammann priorities.
