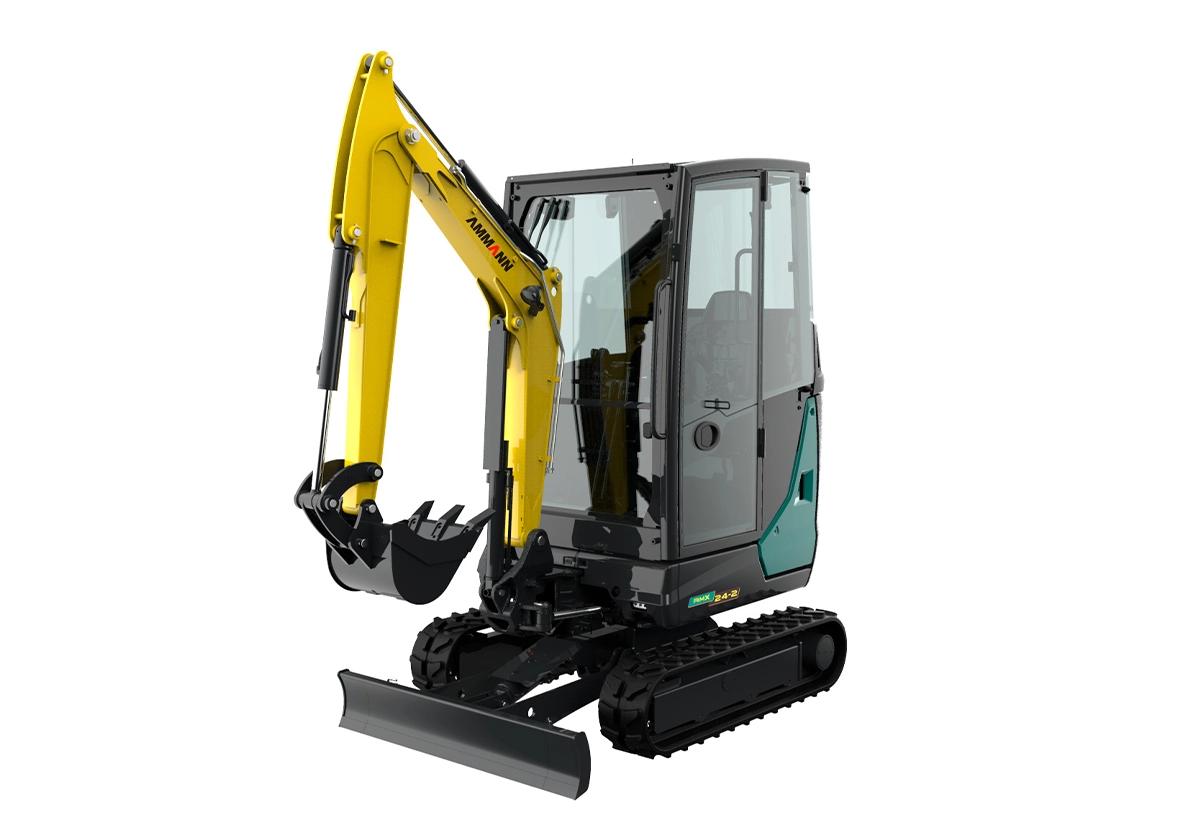

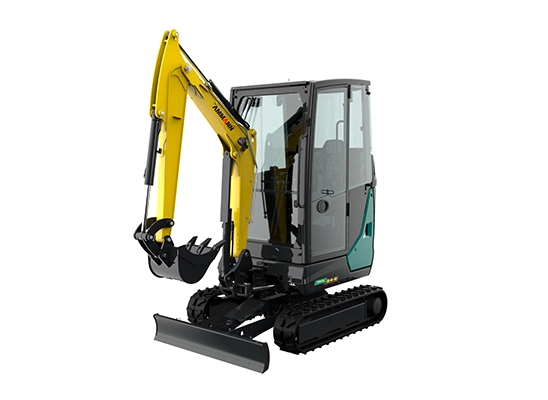

AMX 24-2
Mini Excavator
2190 kg
990 mm
2560 (2760) mm
Power and versatility
Mini Excavator with Short Tail design
The AMX 24-2 Mini Excavator offers an interior space comparable to premium machines.
Excellent excavation depth
Specifications
Standard
Kubota engine 20.9 hp Stage V
Rubber tracks
Additional line for hydraulic hammer (PTO 1)
Cab or four-post canopy
Variable track 990-1300 mm
24-month warranty for the whole machine and 60-month warranty for the welded structure
Options
All types of (mechanical or hydraulic) quick connect fittings and buckets
Additional working lights
Long dipper
Radio
Customisable paint
3 safety valves, regular general checks and calculation charts
AUX 2 (PTO 2)
Panolin biodegradable hydraulic oil
GENERAL
| AMX 24-2 | - | - | |
|---|---|---|---|
| Operating weight with FOPS or canopy and rubber tracks | 2090 kg | - | - |
| Operating Weight | 2190 kg | - | - |
| Travel speed | 0 - 2.6 km/h | - | - |
| Turret rotation speed | 10.5 t/min | - | - |
| Type of equipment | Monobloc + orienta- tion de pied de flèche | - | - |
| Replaceable pins and bushings | Yes | - | - |
| Boom foot and bucket links in cast steel | Yes | - | - |
| Tilting operator cab | Yes | - | - |
DIMENSIONS
ENGINE
HYDRAULIC SYSTEM
PERFORMANCE
CAPACITIES / VOLUMES
CONTROLS
