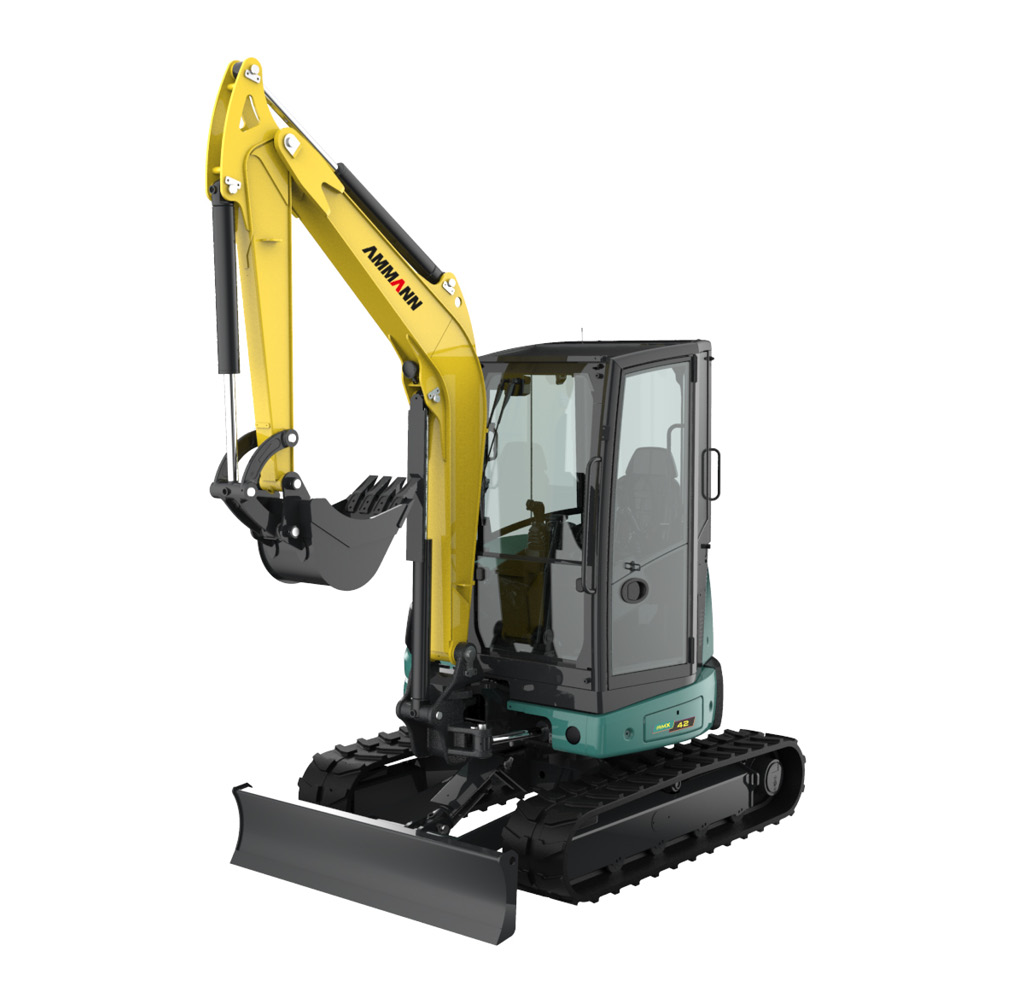

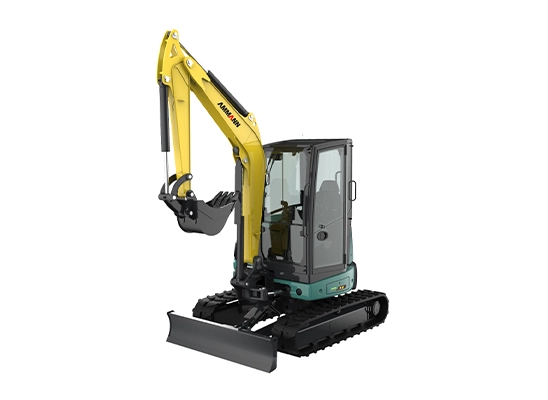

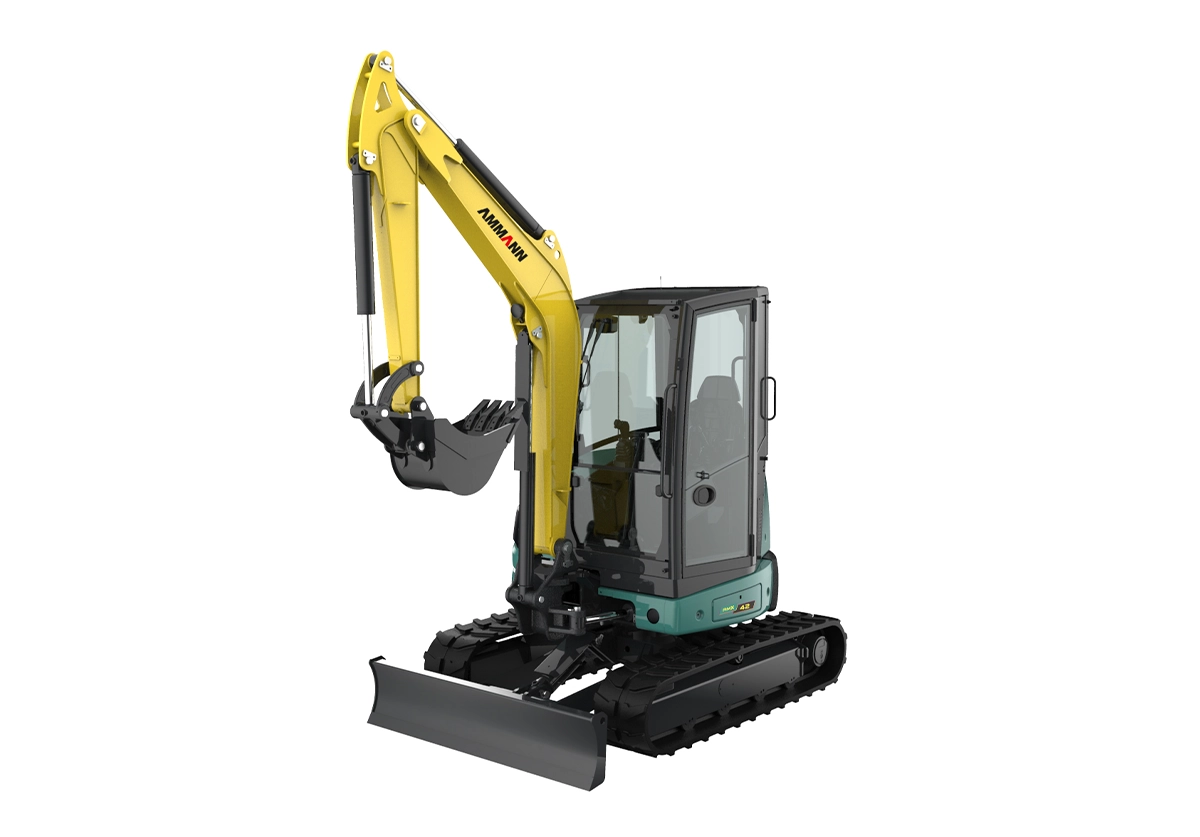

AMX 42
Mini Excavator
4200 kg
1580 mm
3085 (3335) mm
Outstanding performance
Mini Excavator with Zero Tail design
The AMX 42 Mini Excavator is the first model in the series to offer complete versatility on the jobsite. This model weighs 4 tonnes and has a compact profile with zero tail swing.
Excellent excavation depth
Specifications
Standard
Kubota diesel engine D1803-CT R Stage V
Tilting operator platform / tilting operator cab
Rubber tracks
AUX 1 for hydraulic hammer (PTO 1)
Flow sharing / load sensing hydraulic system
Four-post canopy or enclosed cab
Options
All types of (mechanical or hydraulic) quick connect fittings and buckets
Anti-theft system
Additional working lights
Long dipper
Radio
Customisable paint
Beacon
Ground-level fuel filler pump
GENERAL
| AMX 42 | - | - | |
|---|---|---|---|
| Operating weight with FOPS or canopy and rubber tracks | 4050 kg | - | - |
| Operating Weight | 4200 kg | - | - |
| Travel speed | 0 - 2.5 km/h | - | - |
| Turret rotation speed | 10.5 t/min | - | - |
| Type of equipment | Monobloc et orienta- tion de pied de fléche | - | - |
| Replaceable pins and bushings | Yes | - | - |
| Boom foot and bucket links in cast steel | Yes | - | - |
| Tilting operator cab | Yes | - | - |
DIMENSIONS
ENGINE
HYDRAULIC SYSTEM
PERFORMANCE
CAPACITIES / VOLUMES
CONTROLS
