The ABG paver outperforms the competition on the LTA jobsite.
February 6, 2025
An ABG 7820 Paver with a VDT-V 79 screed had a strong performance in head-to-head testing against a competitive machine.
Interested in receiving a quote?
Productive and cost-effective
The paver, effective at widths up to 9 metres, boosts productivity and lowers operating costs. Operation is simple and efficient. Durability and quick access to maintenance points maximise uptime.

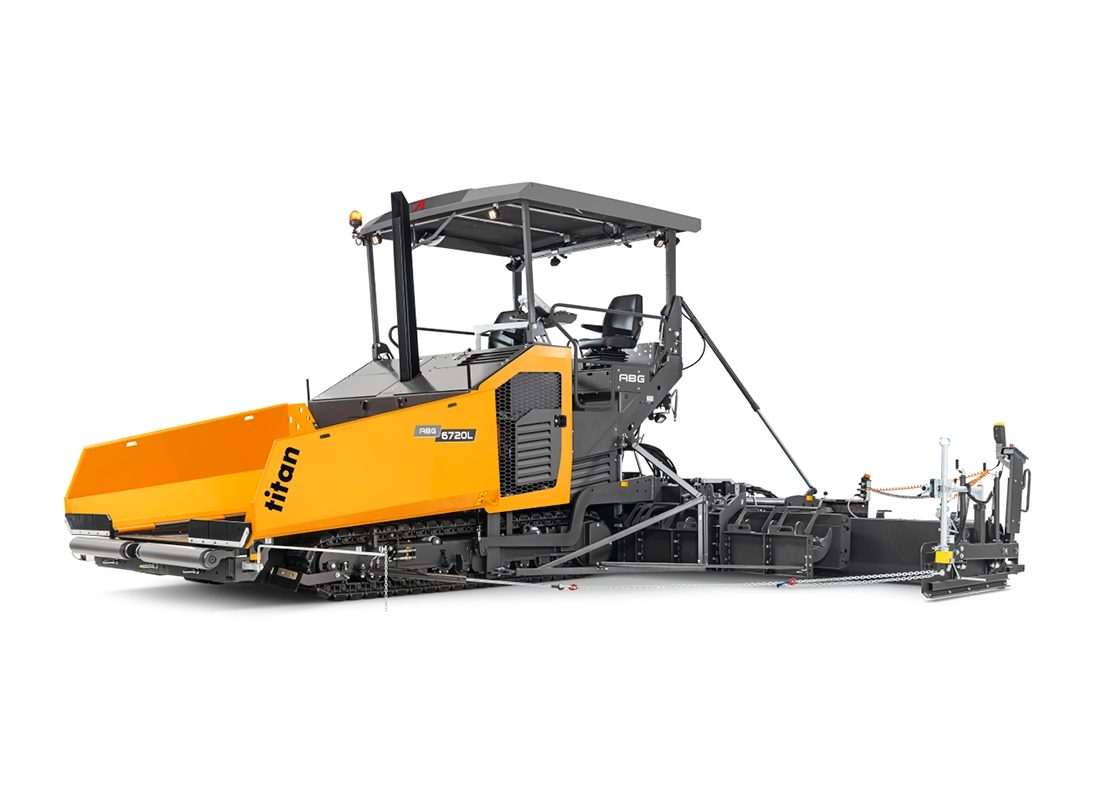

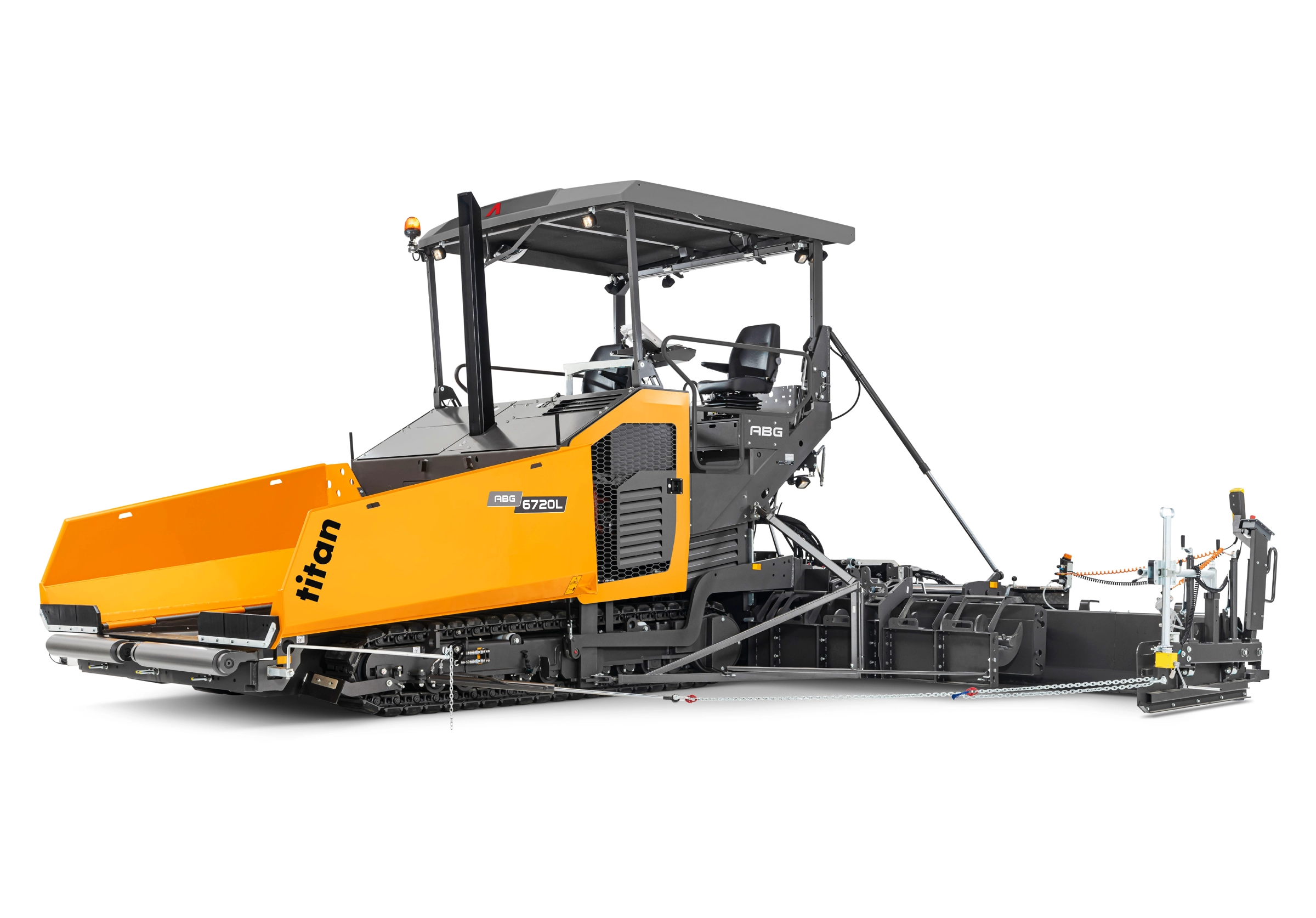

ABG 6720
Tracked Paver
Productive and cost-effective
Specifications
Standard
Volvo (Deutz) Diesel engine, CEV Stage IV
Electronic drive control
Lifetime lubricated crawler track rollers
Forged and hardened crawler track links
Automatic track tensioner
Standard long hopper
160 mm push roller
Analog conveyor sensors
Options
Individually operated hopper wings
Auger extensions and additional auger bearings
Hydraulic auger height adjustment
Levelling Equipment
High ambient temperature fan
Screed assist
Screed anti-climbing lock
Screed load device
Units
ENGINE
| ABG 6720L | - | - | |
|---|---|---|---|
| Emission stage | China 4 | - | - |
| Manufacturer | Volvo (Deutz) | - | - |
| Engine Model | TAD 570VE | - | - |
| Nominal speed | 2000 RPM | - | - |
| Power output ISO | 140 kW | - | - |
| Electrical system | 24 V | - | - |
| Fuel tank capacity | 250 L | - | - |
WEIGHT & OPERATING CHARACTERISTICS
CAPACITY & PERFORMANCE
MATERIAL FEEDING SYSTEM
Proven versatility and effectiveness all over the world
Take your paver’s performance to the next level with ABG screeds, built on our industry-leading road machinery experience and advanced technology. Proven across a host of paving jobs all over the world, our range of vibratory screeds with single or dual tamper bar solution combine efficiency and cost-effectiveness for you to achieve the finest mat finish.
