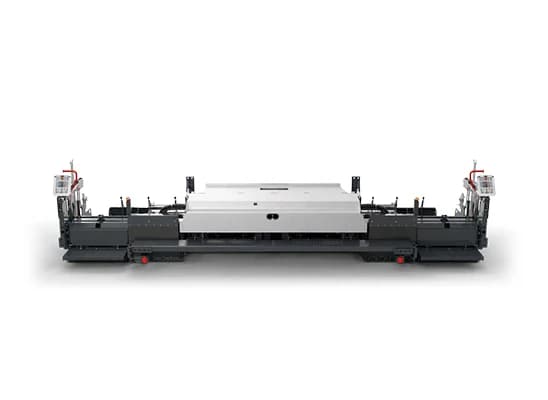

VDT-V 88

Variomatic High Compaction Screed with Double Tamper Technology

Per: ABG 8820 | ABG 7820 | ABG 6820


3 m


9 m


2 Tampers


Vibrazione

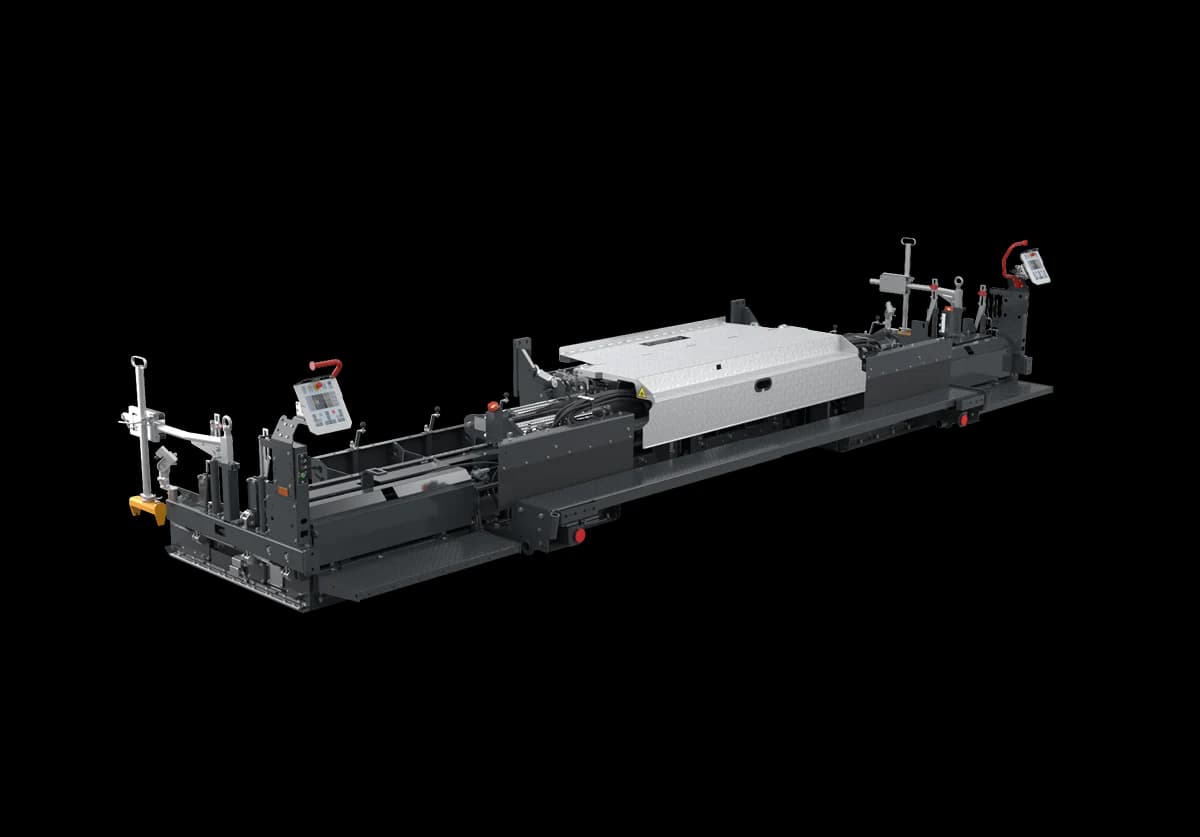

Vario_Screed-VDT-V_88-1200x837
Siete interessati a ricevere un preventivo?

When Compaction Matters

Screed features

Click the points on the screed to see what each feature does.

Screed-Value-selling(HotSpots)-VDT-V_88-ID5

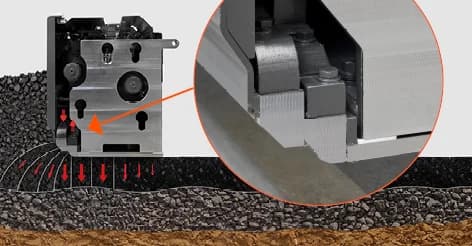

Double Tamper Power
Two tampers, one goal: maximum paving quality and maximum pre-compaction. The first tamper meters and pre-compacts the material, while the second delivers maximum compaction performance – providing greater performance reserves and outstanding results, even under demanding conditions.
Screed-Value-selling(HotSpots)-VDT-V_88-ID1

Specifiche tecniche

Standard

  • Electrical Screed Heating

  • Manual Height Adjustment of the Screed Extensions

  • Quick Coupling System for Screed Extensions

  • Hydraulic Crown Profile Adjustment

  • Manual End Gates

  • Mechanical Tamper Stroke Adjustment (0/3/6/10 mm)

A richiesta

  • Integrated Screed Width Measurement with Display in the MCU

  • Integrated Crown Profile Sensor with Display in the SCU

  • Crown Profile Adjustment via the SCU

  • Hydraulic Height Adjustment of Screed Extensions

  • Additional Storage Boxes for End Gates

  • Foldable End Gates

  • Handset Crown Control

  • Basic Screed Reduction Plates - 0,25 m per side

Unità
VDT-V 88
VDT-V 88
Ammann File Placeholder
Confronto
Ammann File Placeholder
Confronto

Paving Widths

VDT-V 88--
Basic width3 m--
Hydraulic Adjusting range3.0 - 6.0 m--
Max. paving width9 m--
Min. paving width with reduction kit2.5 m--
Available screed extension sizes0.75, 1.25 m--
Depth of base plate350 mm--

Profile Adjustments

Compaction Systems

Heating System

Weights

Screed Configurator App

This tool helps you plan your paver screed configurations and assists technicians with on-site screed assembly. Follow the simple 4-step process to select your paver, choose a screed, configure the paving width, and generate a complete parts list with assembly instructions.
