REDUCING EMISSIONS

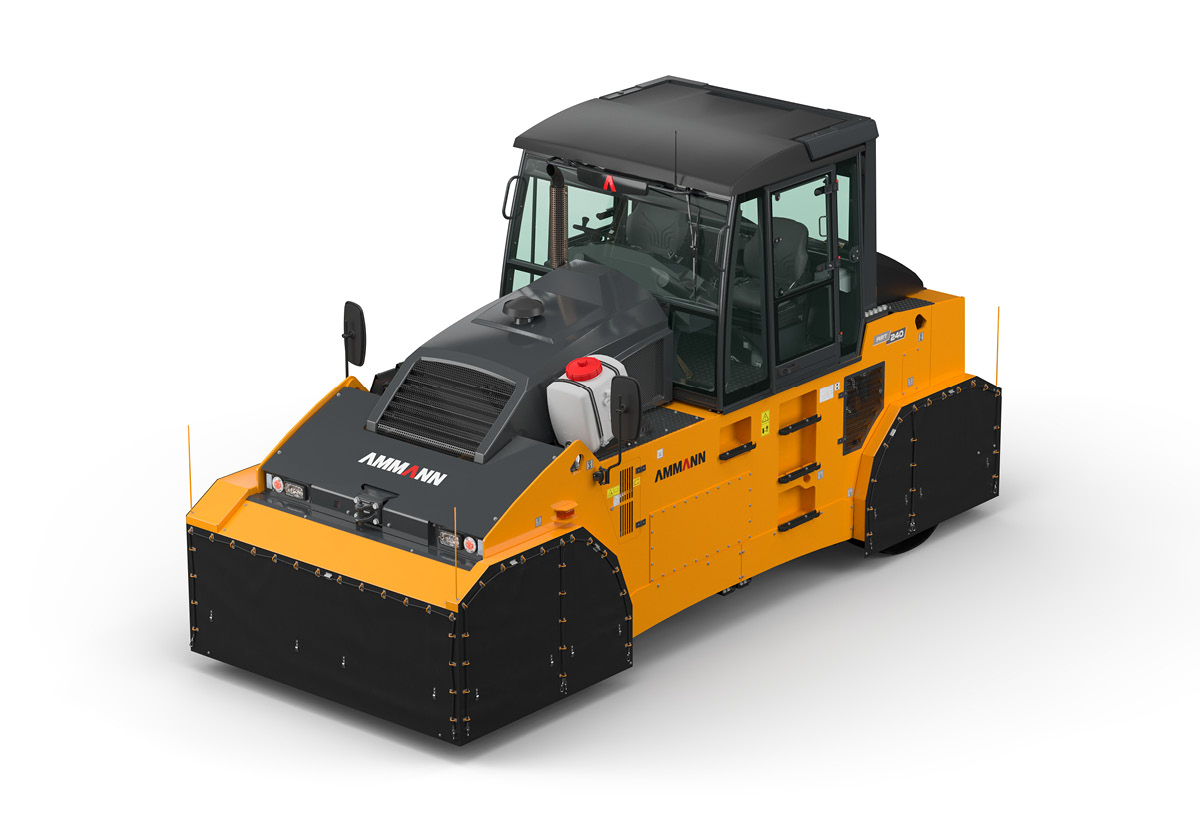

The Ammann ART 240 Pneumatic Tyred Roller does more than lower emissions. The EU Stage V / U.S. EPA Tier 4f machine provides all the key benefits of other Ammann tyred rollers, including consistent coverage and even weight distribution. The propulsion system and rear drive axle provide the necessary power, whether working with or without ballast. Four ballast options and the air-onrun system ensure the machine is properly matched to the jobsite. The machines are easy to handle, helping operators of all experience levels succeed.
-
Highlights
-
Specifications
-
Options
PRODUCTIVITY

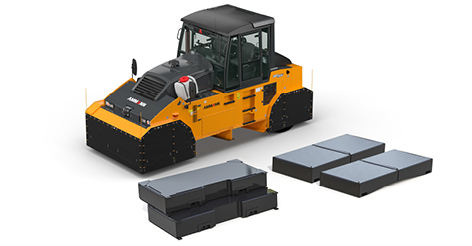

Ballasting system
Offers wide range of weight, from 9 to 24 tons
Air-on-run system
Central inflation system for easy control of tyre pressure
Front isostatic axle with oscillation
Higher stability and increased surface coverage and quality
Offers wide range of weight, from 9 to 24 tons
Air-on-run system
Central inflation system for easy control of tyre pressure
Front isostatic axle with oscillation
Higher stability and increased surface coverage and quality
ERGONOMICS
Simple & reliable dashboard
Intuitive machine control, even with an unskilled operator
Operator workplace
Ergonomically friendly operator station designed for high operator comfort during working day
Visibility
Excellent all-around machine visibility for safety on the jobsite
Intuitive machine control, even with an unskilled operator
Operator workplace
Ergonomically friendly operator station designed for high operator comfort during working day
Visibility
Excellent all-around machine visibility for safety on the jobsite
SERVICEABILITY
Tool-free daily inspection
Quick and easy daily inspection
Maintenance-friendly design
High focus on easy maintenance and robust design to minimise downtime
Draining points
Ground access to all main draining points
Quick and easy daily inspection
Maintenance-friendly design
High focus on easy maintenance and robust design to minimise downtime
Draining points
Ground access to all main draining points

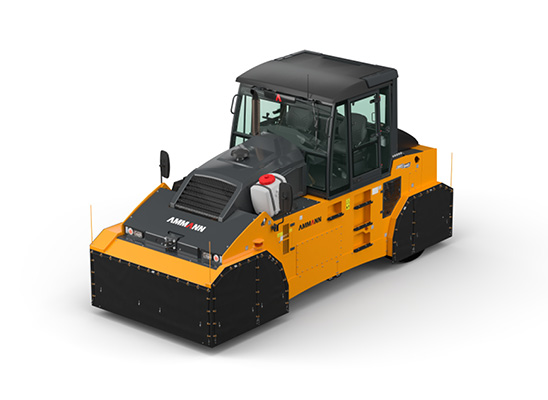

| ART 240 PNEUMATIC ROLLER (EU STAGE V / U.S. EPA TIER 4F) | |
|---|---|
| DIMENSIONS | |
| A = MACHINE LENGTH | 5030 mm |
| A = MACHINE LENGTH (THERMAL APRONS) | 5780 mm |
| B = WHEELBASE | 3780 mm |
| C = MACHINE HEIGHT | 3130 mm |
| D = MACHINE HEIGHT (REMOVED ROPS) | 2380 mm |
| E = WORKING WIDTH | 1986 mm |
| F = MACHINE WIDTH | 2100 mm |
| F = MACHINE WIDTH (THERMAL APRONS) | 2310 mm |
| ENGINE | |
| TYPE | Deutz TCD3.6 |
| POWER ACCORDING TO ISO 14396 | 74.4 kW (100 HP) |
| MAXIMUM TORQUE | 410 / 1600 Nm/rpm |
| EMISSION STAGE | EU Stage V / U.S. EPA Tier 4 Final |
| EXHAUST GAS AFTER-TREATMENT | EGR+DOC+DPF+SCR |
| NUMBER OF CYLINDERS | 4 |
| COOLING SYSTEM OF ENGINE | Liquid |
| WEIGHT & OPERATING CHARACTERISTICS | |
| OPERATING WEIGHT CECE | 9980 kg |
| OPERATING WEIGHT MAX. | 24 000 kg |
| MAX. TRANSPORT SPEED | 18 km/h |
| CLIMBING ABILITY | 25% |
| TURNING RADIUS INNER (EDGE) LEFT | 6200 mm |
| TURNING RADIUS INNER (EDGE) RIGHT | 6100 mm |
| NUMBER OF FRONT WHEELS | 4 |
| NUMBER OF REAR WHEELS | 4 |
| SIZE OF TYRES | 11 × 20” |
| MISCELLANEOUS | |
| BRAKES OPERATING | Drum |
| BRAKES PARKING | Mechanical disc |
| BRAKES EMERGENCY | Mechanical disc |
| TYPE OF DRIVE | Hydrodynamic |
| NUMBER OF DRIVEN WHEELS | 4 |
| OSCILLATION ANGLE | 3° |
| ANGLE OF STEERING | 32° |
| TYPE OF WATERING | Pressure |
| FUEL TANK CAPACITY | 250 l |
| WATER FOR TYRE WATERING | 390 l |
| VOLTAGE | 24 V |
| MAXIMUM RECOMMENDED COMPACTED LIFT THICKNESS AT OPTIMAL WORKING CONDITIONS | |
| ROCKFILL | – |
| SAND / GRAVEL | 250 mm |
| MIXED SOILS | 200 mm |
| SILT | 200 mm |
| CLAY | 150 mm |
| STABILISATION | 200 mm |
| ASPHALT | 120 mm |
STANDARD EQUIPMENT
- Open driver’s platform with railing and protection against vandalism
- Two driver’s seats and steering wheels
- 4 + 4 smooth diagonal tyres 18 PR
- Air-on-run tyre inflation system
- Isostatic oscillating front axle
- Hydrodynamic rear axle drive
- Halogen work lights
- ATC – Ammann Traction Control
OPTIONAL EQUIPMENT
- A/C
- Additional mirrors
- Back-up alarm
- Back-up alarm adaptive
- Back-up light
- Ballast blocks under 4 x 0.75t
- Ballast blocks under 4 x 1.5t
- Ballast blocks under 4 x 2.0t
- Ballast empty boxes under 4×0.2t
- Ballast inside frame 1.0t
- Ballast inside frame 2.0t
- Ballast inside frame 4.0t
- Ballast inside frame 8.0t
- Canvas canopy ROPS mounted
- CE conformity
- Color scheme customer
- Edge cutter (no pressing wheel)
- Emulsion sprinkling system 60l
- Engine air inlet pre-cleaner
- Fire extinguisher
- FOPS cab
- FOPS ROPS mounted
- Frame ROPS
- Frame waterproof
- Greasing tool with wheel spanner
- Chock blocks
- Maintenance kit 1000h
- Maintenance kit 500h
- Radio FM
- Radio preparation
- Scrapers brushes tiltable
- Scrapers cocoa tiltable
- Seat belt 3”
- Spare wheel Dunlop
- Spare wheel Michelin
- Spare wheel Mitas diagonal
- Spare wheel Mitas radial
- Sun films on cab glasses
- Telematics preparation
- Telematics Servicelink plus
- Telematics trackunit
- Thermal aprons
- Toolset
- Towing hinge front
- Tyres Dunlop
- Tyres Michelin
- Tyres Mitas radial
- Warning beacon for cab
- Warning beacon for platform
- Warning beacon for ROPS
