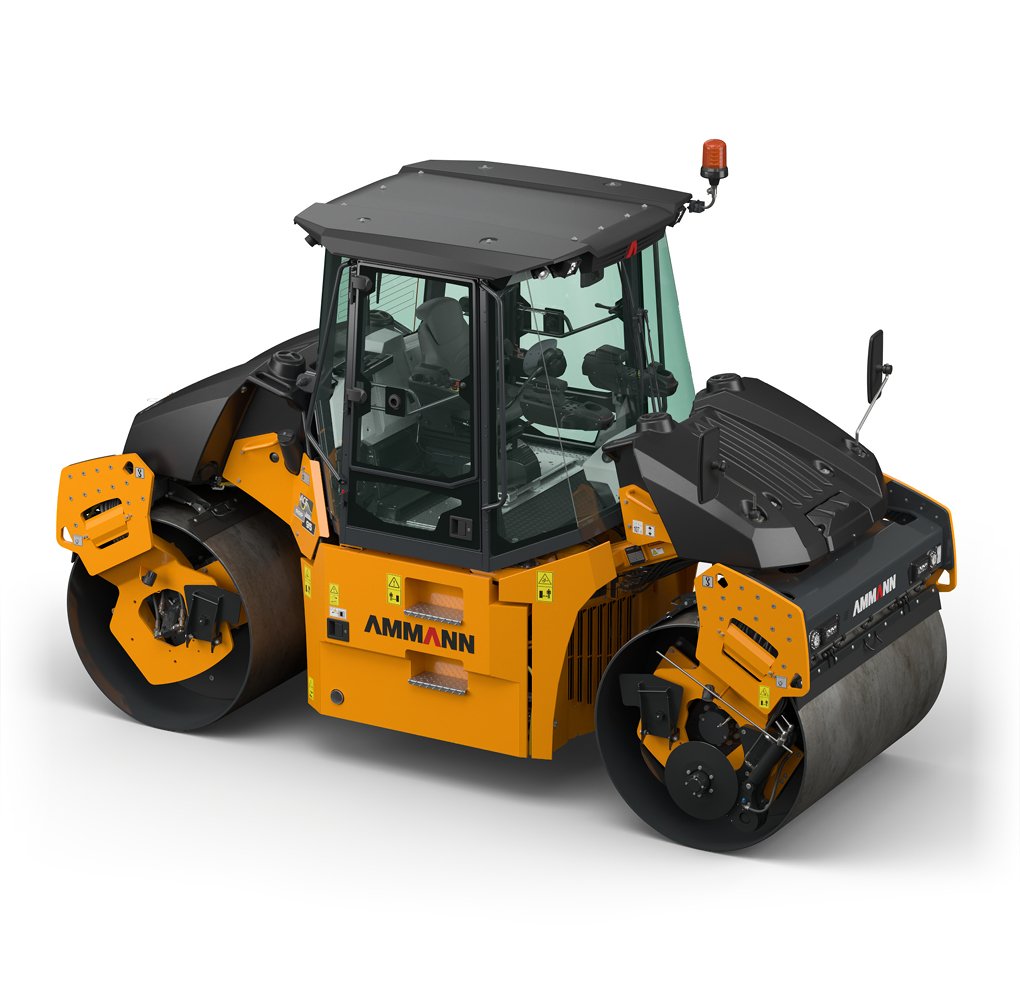

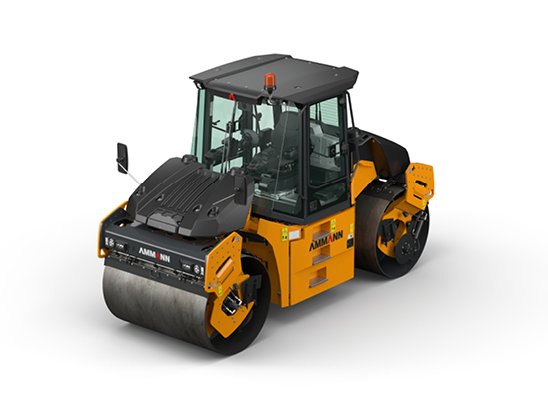

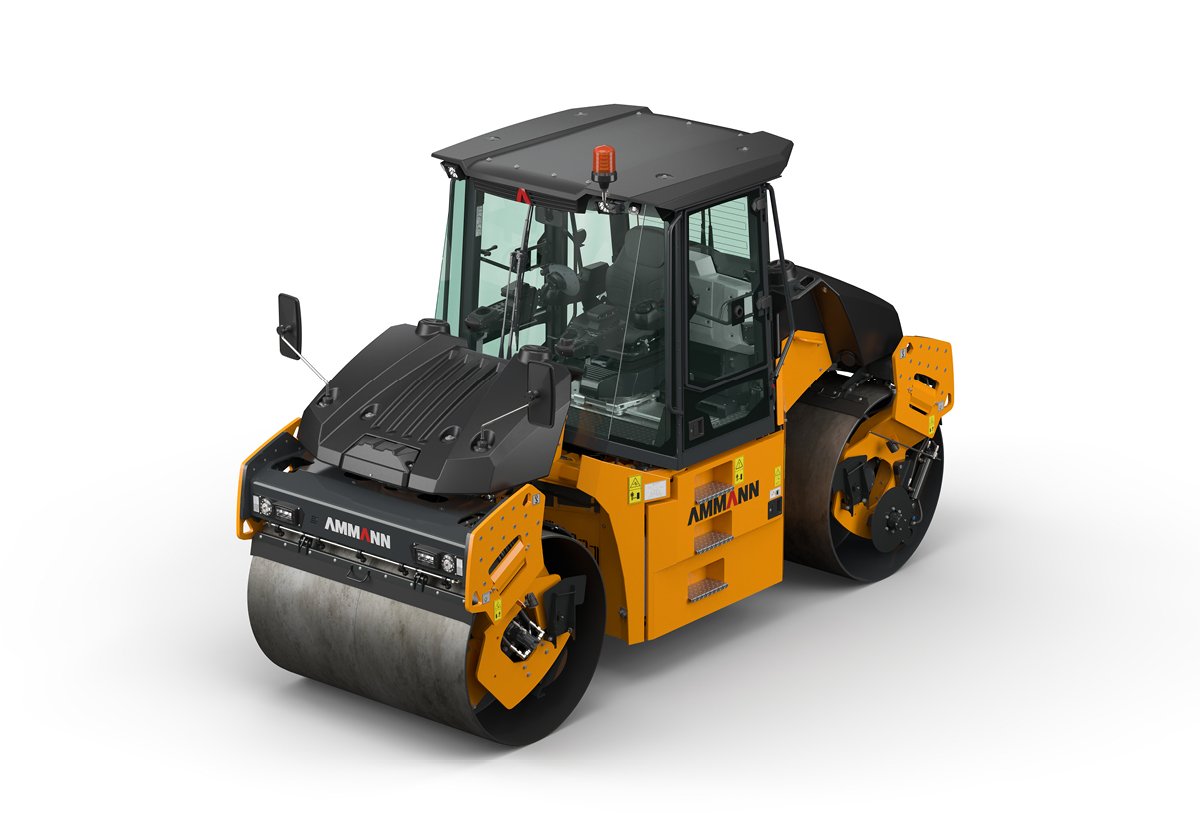

ARP 95

  • Photos

  • Videos

  • Virtual Tour

VPT thumbnails

The ARP 95 Pivot-Steer Roller features the widest working width of any comparable compactor on the market – and offers considerable fuel savings, too.

The redesigned machine frame enables the drums to be offset 1390 mm (4.6 ft.) on each side, compared with the previous version’s 1350 mm (4.4 ft.). The result is compaction width capability of 3070 mm (10 ft.), making the ARP 95 the market leader.

Reduced fuel expenses are another key benefit. The compactor is powered by a Deutz EU Stage V / US EPA Tier 4 Final engine, featuring improved software and other efficiencies that lower fuel costs as much as 25 per cent when compared with the previous generation.

Biofuel Use

Ammann diesel-burning machines are able to utilise hydrotreated vegetable oil (HVO), a biofuel made from waste that reduces CO2 emissions by up to 90%.

  • Highlights

  • Specifications

  • Options

Open All

Productivity

Pivot steering with split drums
Enables higher manoeuvrability on jobsites and reduces surface shear forces.
Ammann Traction Control
Increases machine traction on difficult jobsites and makes machine loading easier.

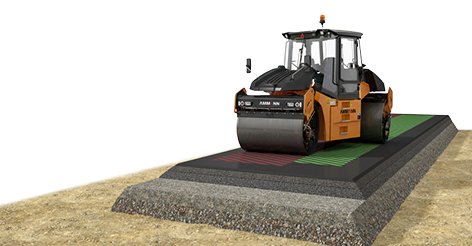

Multiple vibration frequencies
Varied vibratory settings increase or decrease compaction output for precise compaction control and higher quality.

Ergonomics

Fingertip steering (FTP)
Ergonomic steering system makes the machine operator-friendly and easy to control.
Multi-functional display
Central display is located in front of the operator for optimal machine control and monitoring.
Exceptional operator visibility
Perfect all-around machine visibility to maximise safety on the jobsite.

Serviceability

Tiltable cab and wide engine doors
Exceptional accesibility to all major components and service points.
Maintenance-friendly design
High focus on easy maintenance and robust design to minimise downtime.
Ground access to service and maintenance points
Fast and easy machine servicing; no additional tools required.



ARP 95 (StV / T4f)
WEIGHT & OPERATING CHARACTERISTICS
ARP 95 ARP 95 (ACEpro)
OPERATING WEIGHT CECE 9930 kg 9970 kg
OPERATING WEIGHT MAX. 11 505 kg 11 545 kg
STAT. LIN. LOAD OF FRONT DRUM 26.6 kg/cm 29.9 kg/cm
STAT. LIN. LOAD OF REAR DRUM 29.5 kg/cm 29.5 kg/cm
TRAVEL SPEED 10 km/h 10 km/h
GRADEABILITY WITH VIBRATION 25% 25%
GRADEABILITY WITHOUT VIBRATION 30% 30%
TURNING RADIUS INNER (EDGE) 3065 mm 3065 mm
TURNING RADIUS OUTER (CONTOUR) 4785 mm 4785 mm
OSCILLATION ANGLE ±6° ±6°
ANGLE OF STEERING ±25° ±25°



ENGINE
MANUFACTURER Deutz TCD3.6 L4
POWER OUTPUT ISO 14396 74.4 kW (100 HP)
NOMINAL SPEED 2200 min-1 (RPM)
EXHAUST GAS AFTER-TREATMENT EGR+DOC+DPF+SCR
EMISSION CLASS EU Stage V / U.S. EPA Tier 4 Final
MISCELLANEOUS
DRUM OFFSET 1390 mm
MAX WORKING OFFSET MODE 3070 mm
BRAKES OPERATING Hydrostatic
BRAKES PARKING Mechanical multiple-disc
BRAKES EMERGENCY Mechanical multiple-disc
FUEL TANK CAPACITY 165 l
DEF (ADBLUE) TANK 10 l
WATER TANK CAPACITY 800 l
BATTERY / CAPACITY 24 V / 2×55 Ah



COMPACTION FORCES
ARP 95 ARP 95 (ACEpro)
FREQUENCY I *38–42Hz 42 Hz
FREQUENCY II *42–52 Hz 52 Hz
AMPLITUDE I *0.65 mm 0.65 mm
AMPLITUDE II *0.28 mm 0.28 mm
CENTRIFUGAL FORCE I *74–91 kN 91 kN
CENTRIFUGAL FORCE II *39–60 kN 60 kN
FREQUENCY ACEpro MIN. – 37 Hz
FREQUENCY ACEpro MAX. – 52 Hz
AMPLITUDE ACEpro MAX. – 0.85 mm
CENTRIF. FORCE ACEpro MAX. – 110 kN
* Standard & ACEforce drum



MAXIMUM RECOMMENDED COMPACTED LIFT THICKNESS AT OPTIMAL WORKING CONDITIONS
ROCKFILL N/A
SAND / GRAVEL 400 mm
MIXED SOILS 300 mm
SILT N/A
CLAY N/A
STABILISATION 200 mm
ASPHALT 140 mm
STANDARD EQUIPMENT
  • 2 amplitudes / Multiple frequencies
  • Ammann color design and decals
  • ATC – Ammann Traction Control
  • Battery disconnection switch
  • Cab ROPS/FOPS
  • CE conformity
  • Centralized draining points
  • Double drum version: Front and rear drive and vibration
  • Double drum version: Two split steerable drums
  • ECOdrop
  • Electronic drive lever with intelligent functions
  • FTS (Finger-Tip-Steering)
  • Multi-functional display for machine control and overview
  • On-board diagnostics
  • Operator´s station with one drive lever (RH)
  • Pressure water sprinkling with interval switch, 3 stage filtration and 2 pumps
  • Road lights (headlights, rearlights, turning signals, brake lights)
  • Slideable, 270° rotatable and horizontally adjustable driver’s seat with armrests
  • Standard hydraulic oil
  • Telematics Readiness
  • Tiltable scrapers
  • Variable working width (Off-set steering modes)



OPTIONAL EQUIPMENT
  • Additional Documentation Printed
  • Additional Lights 360° LED
  • Additional Mirrors Rear
  • Additional Storage Rack Cab Version
  • Ammann Documentation System (ADS)
  • Ammann Documentation System (ADS-RTK)
  • Air Condition
  • Back-up Alarm
  • Back-up Alarm Adaptive
  • Certificate of Origin
  • Color Scheme Customer
  • Compaction Measuring System ACEforce
  • Compaction Measuring System ACEpro
  • Edge Cutter 45° (Diagonal)
  • Edge Cutter 45° (Front Right)
  • Edge Cutter 45° (Front Right/Front Left)
  • Edge Cutter 60° (Diagonal)
  • Edge Cutter 60° (Front Right)
  • Edge Cutter 60° (Front Right/Front Left)
  • Fire Extinguisher
  • GPS Q-Compaction ACE
  • GPS Q-Compaction Preparation
  • GPS Q-Compaction Preparation ACE
  • Hydraulic Oil Biodegradable
  • Chip Spreader Ammann
  • Chip Spreader Preparation
  • Infrared Thermometer
  • Measuring Points Central
  • Overseas Shipping Preparation
  • Plug 12V
  • Radio FM
  • Rear View Camera
  • Rear View Camera for Chip Spreader
  • Registration plate holder
  • Safety Cover Fan and alternator
  • Maintenance Kit 2000h
  • Maintenance Kit 500h
  • Slow Moving Vehicle Triangle
  • Sun Films on Cab Glasses
  • Telematics ServiceLink Plus
  • Telematics System Preparation
  • Telematics Trackunit
  • Toolset
  • Warning Beacon LED
  • Water Tank Filling from Ground
  • Working Lights Cabin LED
