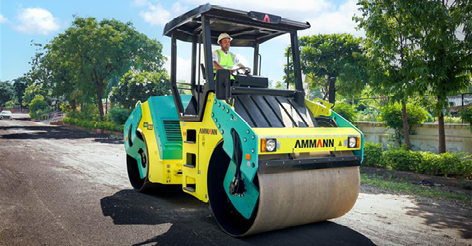

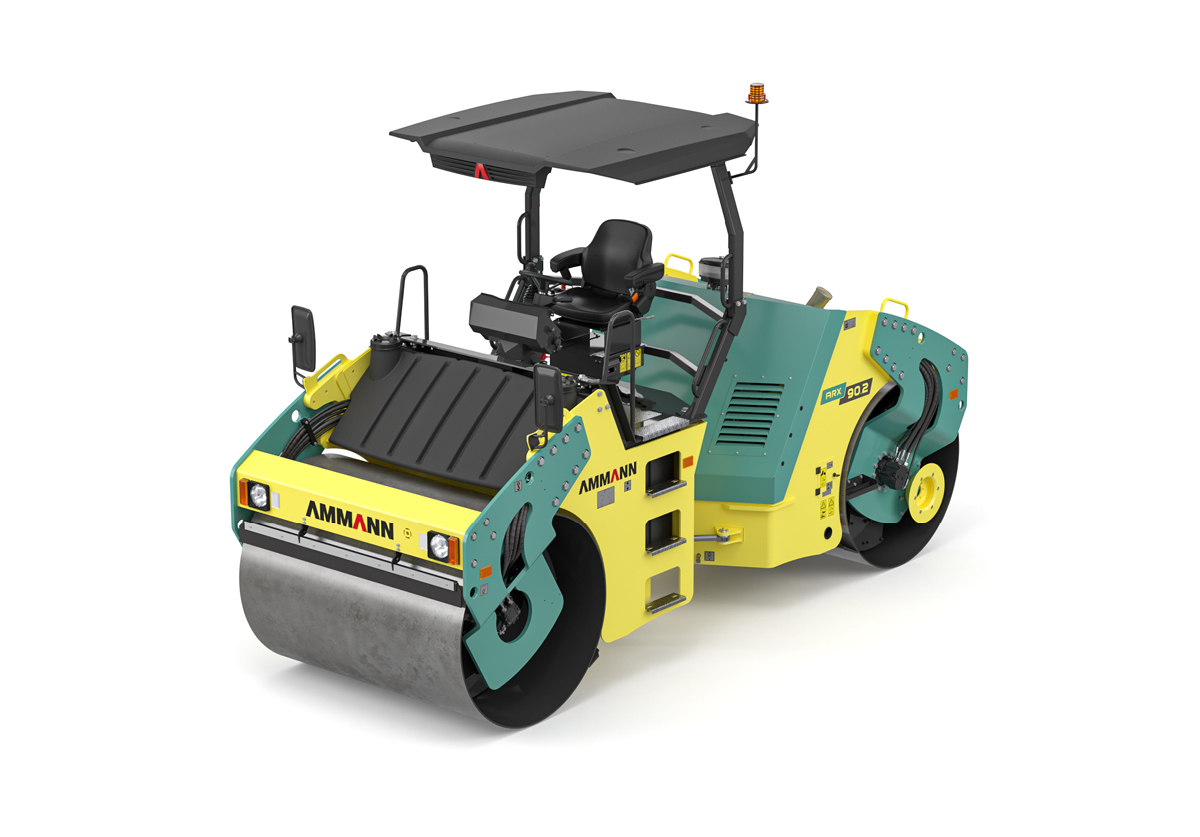

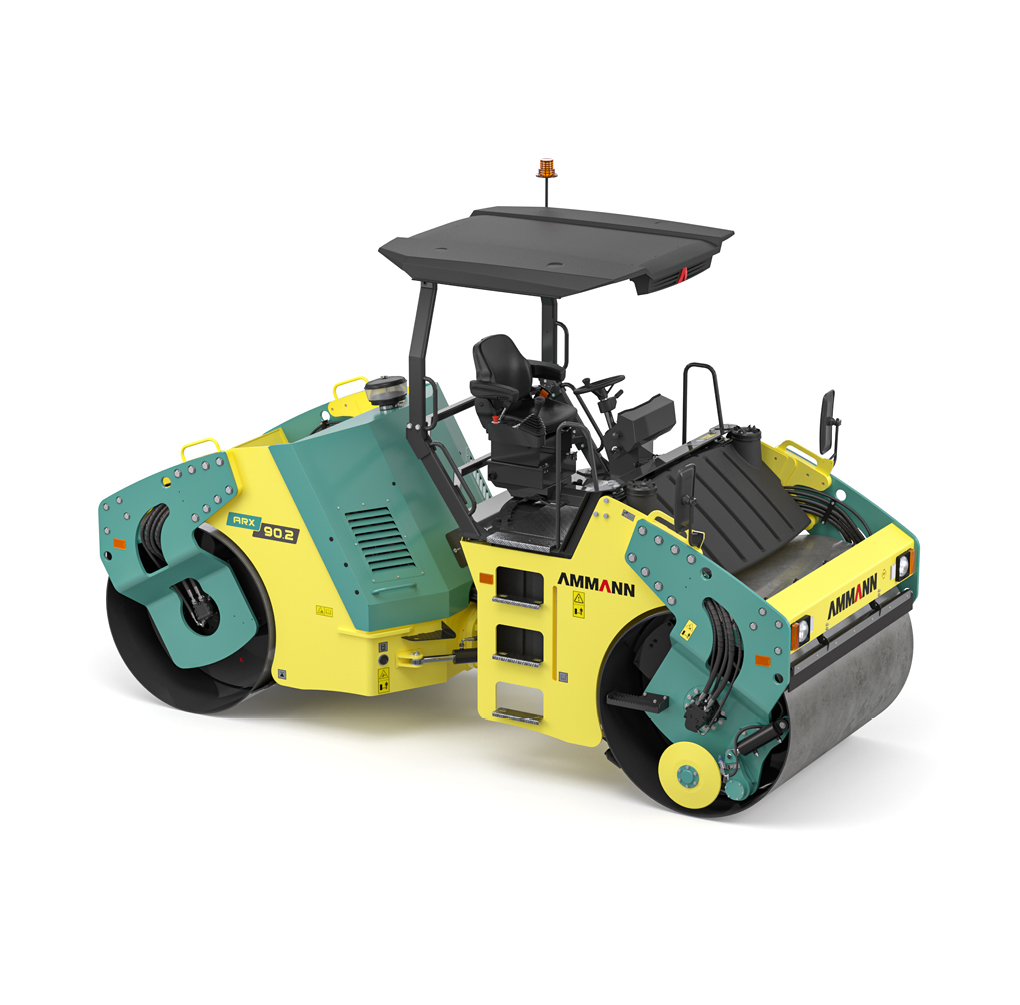

ARX 90.2
Articulated Heavy Tandem Roller
CEV Stage V
1700 mm
9350 kg
High compaction output
Compact loose sub-base materials, such as gravel, as well as thick asphalt layers
Smooth asphalt mats
Specifications
Standard
Rotatable operator station with fixed steering column and handrails with entry/exit from either side
Standard operator seat with sliding, two-point retractable seat belt
Tiltable FRP sun canopy
ECU controlled operations with electronic joystick
Smooth start-stop function
Auto vibration function
Switchable high/low amplitude
Front/rear/both vibration
Options
Premium operator seat (with sliding, suspension and rotation)
Steering column (tiltable)
Compaction meter
Infrared thermometer
Infrared thermometer + compaction meter
Edge cutter: 45-degree front right with edge pressing
Warning beacon
Fire extinguisher – 1 Kg
ENGINE
| ARX 90.2 | - | |
|---|---|---|
| Emission stage | CEV Stage V | - |
| Manufacturer | Ashok Leyland | - |
| Engine Model | H4C47422 | - |
| Rating Standard | ISO 3046-1 | - |
| Power output ISO | 54.6 kW | - |
| Nominal speed | 1400 rpm | - |
| Diesel Oxidation Catalyst | Yes | - |
| Diesel Particulate Filter | Yes | - |
WEIGHT & OPERATING CHARACTERISTICS
COMPACTION FORCES
MISCELLANEOUS
