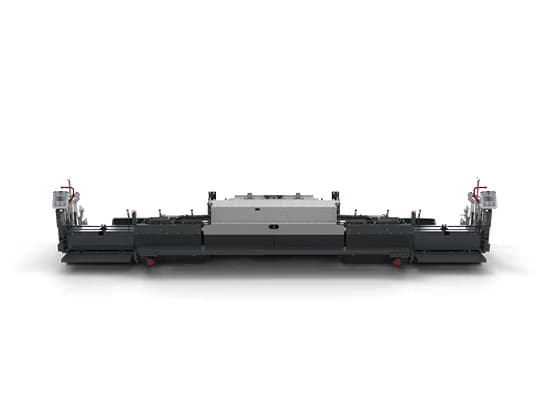

VB 89

Variomatic Screed with Single Tamper Technology and Additional Articulation

For: ABG 8820 | ABG 7820 | ABG 6870


3 m


9 m


1 Tamper


Vibration

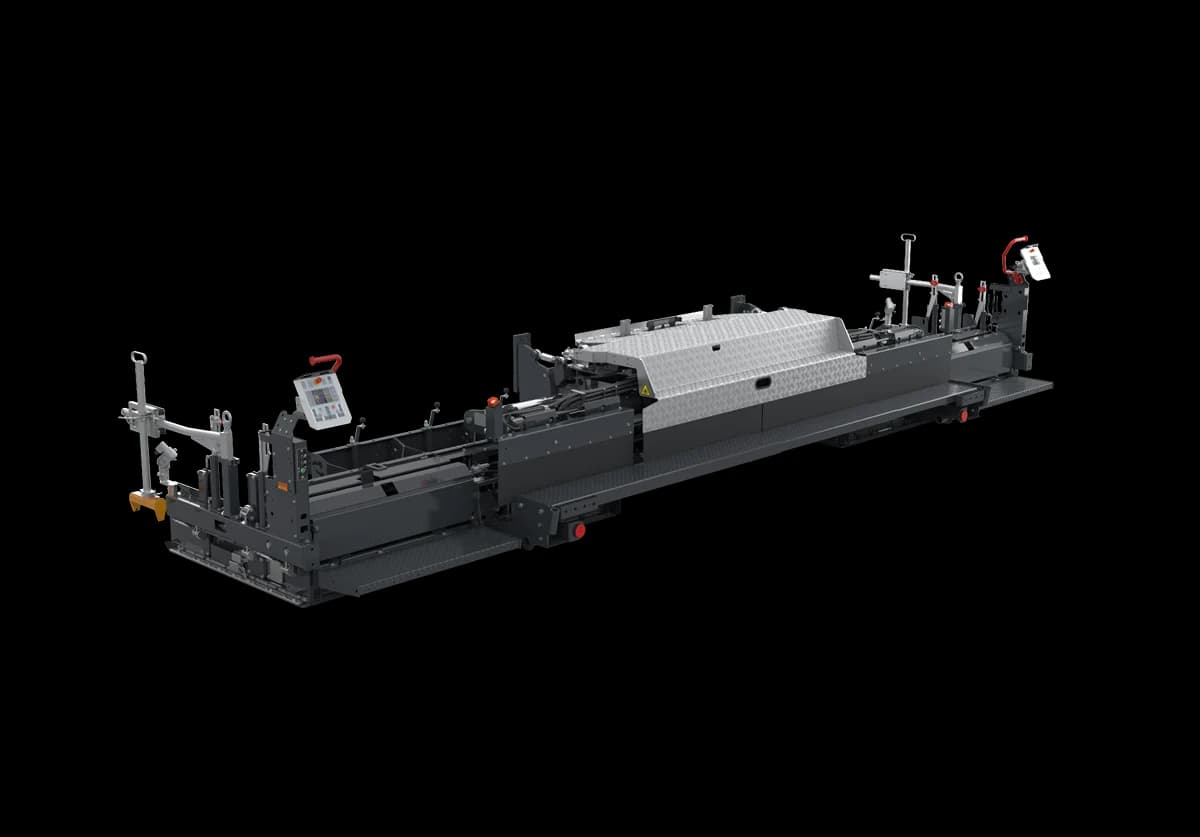

Vario_Screed-VB_89-1200x837
Interested in receiving a quote?

Built for Versatile Paving and Special Profiles.

Screed features

Click the points on the screed to see what each feature does.

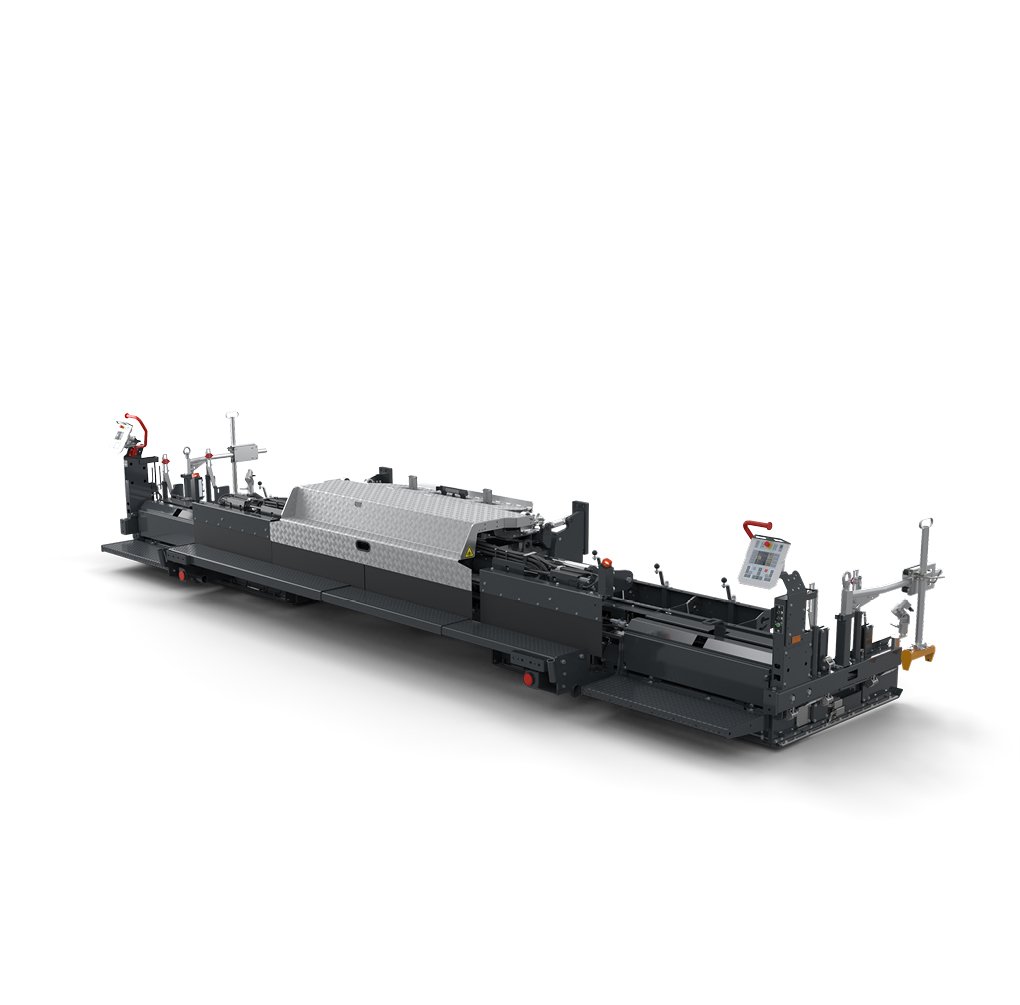

Screed-Value-selling(HotSpots)-O-ID6-VB_89

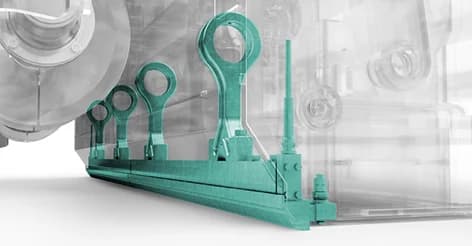

Powerful Pre-Compaction
The proven single tamper system ensures excellent paving quality and reliable pre-compaction across a wide range of applications. Its robust design delivers consistent results, easy operation and high productivity day after day.
Screed-Value-selling(HotSpots)-O-ID1-VB_89

Specifications

Standard

  • Electrical Screed Heating

  • Manual Height Adjustment of the Screed Extensions

  • Quick Coupling System for Screed Extensions

  • Hydraulic Crown Profile Adjustment

  • Manual End Gates

  • Additional Articulation for Screed Extensions (+-10%)

Options

  • Integrated Screed Width Measurement with Display in the MCU

  • Integrated Crown Profile Sensor with Display in the SCU

  • Crown Profile Adjustment via the SCU

  • Hydraulic Height Adjustment of Screed Extensions

  • Additional Storage Boxes for End Gates

  • Foldable End Gates

  • Handset Crown Control

  • Basic Screed Reduction Plates - 0,25 m per side

Units
VB 89
VB 89
Ammann File Placeholder
Compare
Ammann File Placeholder
Compare

Paving Widths

VB 89--
Basic width3 m--
Hydraulic Adjusting range3.0 - 6.0 m--
Max. paving width9 m--
Min. paving width with reduction kit2.5 m--
Available screed extension sizes0.75, 1.25 m--
Reduction in basic width0.5 m--
Depth of base plate350 mm--

Profile Adjustments

Compaction Systems

Heating System

Weights

Screed Configurator App

This tool helps you plan your paver screed configurations and assists technicians with on-site screed assembly. Follow the simple 4-step process to select your paver, choose a screed, configure the paving width, and generate a complete parts list with assembly instructions.

After Sales & Services

No matter where you are, Ammann-trained technicians and parts are nearby. Ammann dealers provide well-trained service technicians who can help you, whether it’s an emergency or preventive maintenance. The vast Ammann network ensures there is a nearby technician who understands your language and your technical needs. Parts availability and ease of ordering are always Ammann priorities.

Contact Form Background Image

  • Contact Form

  • Schedule online meeting

Get in touch with us to meet a sales representative near you

ABG VB 89 Variomatic Screed with Single Tamper
