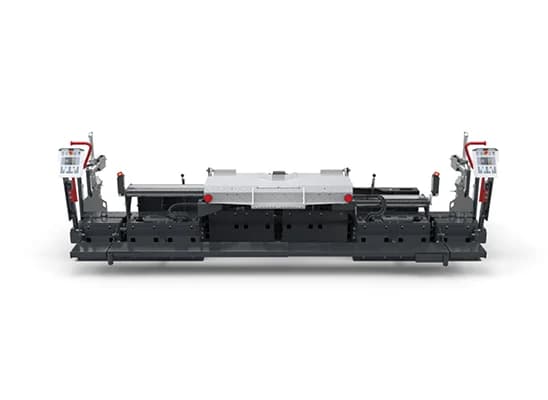

VB 40

Variomatic Screed with Single Tamper Technology

For: ABG 2820 | ABG 2870


1.8 m


4.55 m


1 Tamper


Vibration

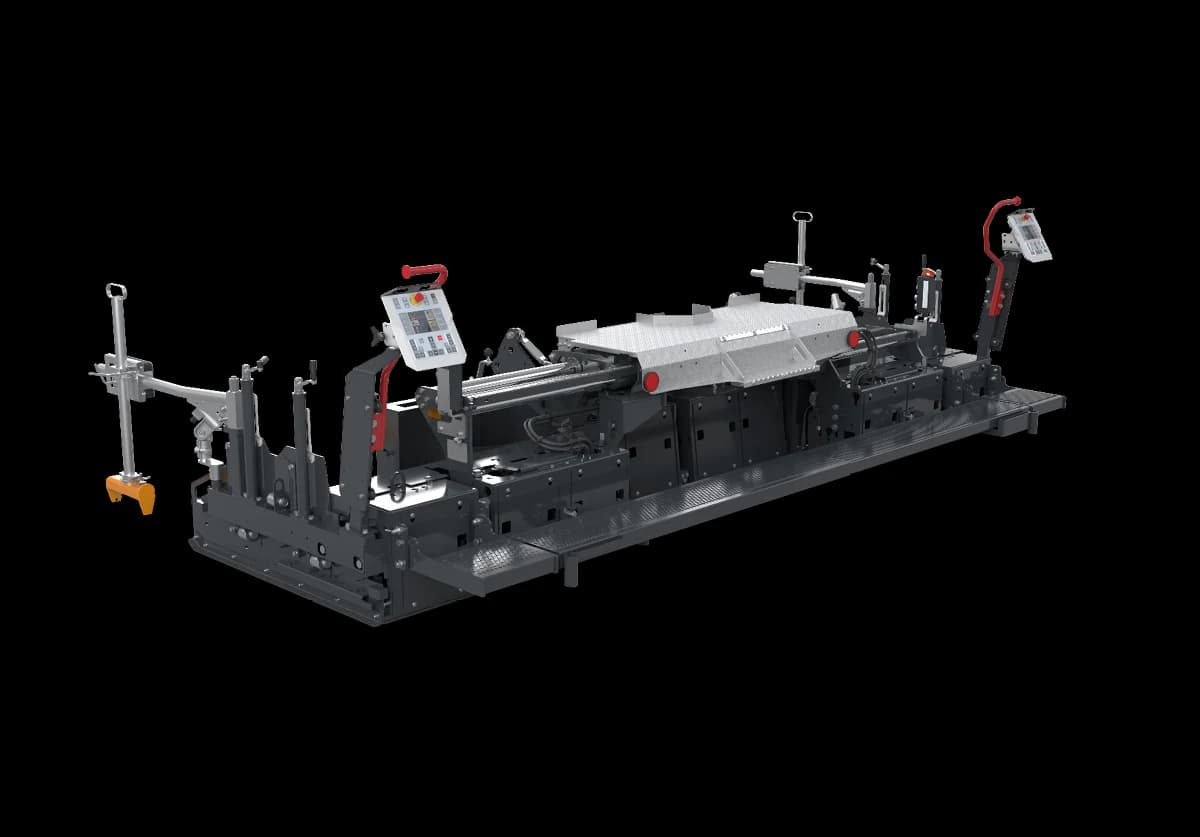

Vario_Screed-VB_40-1200x837
Interested in receiving a quote?

Small in Size. Big on Performance.

Screed features

Click the points on the screed to see what each feature does.

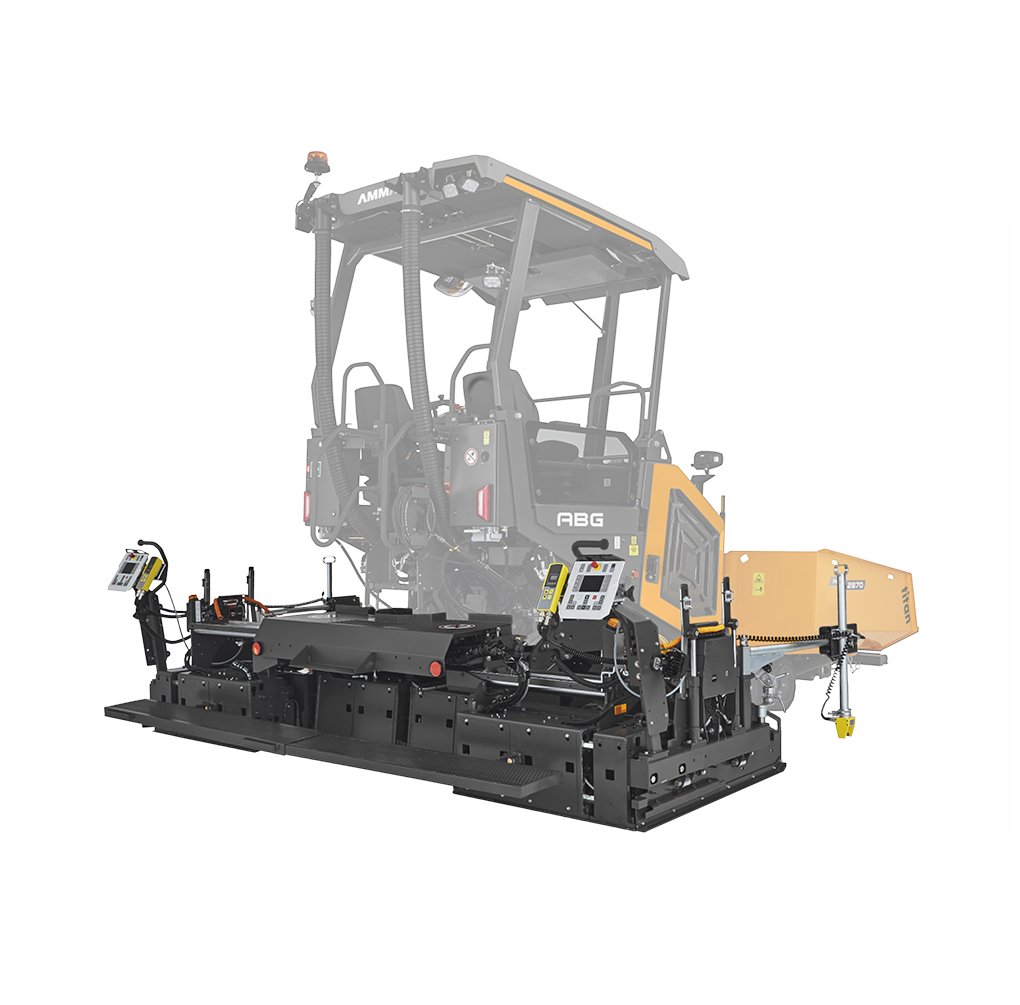

Screed-Value-selling(HotSpots)-K-ID4-VB_40
Powerful Pre-Compaction
The proven single tamper system ensures excellent paving quality and reliable pre-compaction across a wide range of applications. Its robust design delivers consistent results, easy operation and high productivity day after day.

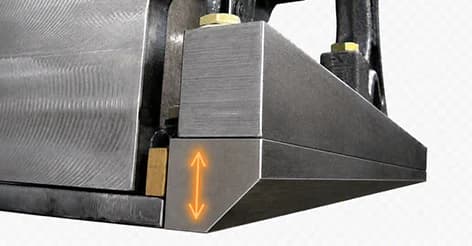

Screed-Value-selling(HotSpots)-K-ID1-VB_40

Specifications

Standard

  • Electrical Screed Heating

  • Manual Height Adjustment of the Screed Extensions

  • Walkway

  • Hydraulic Crown Profile Adjustment

  • Manual End Gates

Options

  • Integrated Screed Width Measurement with Display in the MCU

  • Integrated Crown Profile Sensor with Display in the SCU

  • Crown Profile Adjustment via the SCU

  • Additional Storage Boxes

  • Basic Screed Reduction Plates to 0.8m

  • Heated Manual End Gates

  • Heated hydraulic End Gates

  • End Gate Edging Shoe Variations

Units
VB 40
VB 40
Ammann File Placeholder
Compare
Ammann File Placeholder
Compare

Paving Widths

VB 40--
Basic width1.8 m--
Hydraulic Adjusting range1.8 - 3.5 m--
Max. paving width4.55 m--
Min. paving width with reduction kit0.8 m--
Available screed extension sizes0.26, 0.525 m--
Reduction in basic width1 m--
Depth of base plate335 mm--

Profile Adjustments

Compaction Systems

Heating System

Weights

Screed Configurator App

This tool helps you plan your paver screed configurations and assists technicians with on-site screed assembly. Follow the simple 4-step process to select your paver, choose a screed, configure the paving width, and generate a complete parts list with assembly instructions.

After Sales & Services

No matter where you are, Ammann-trained technicians and parts are nearby. Ammann dealers provide well-trained service technicians who can help you, whether it’s an emergency or preventive maintenance. The vast Ammann network ensures there is a nearby technician who understands your language and your technical needs. Parts availability and ease of ordering are always Ammann priorities.
