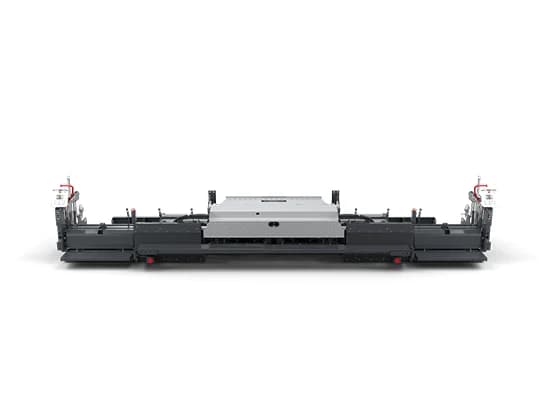

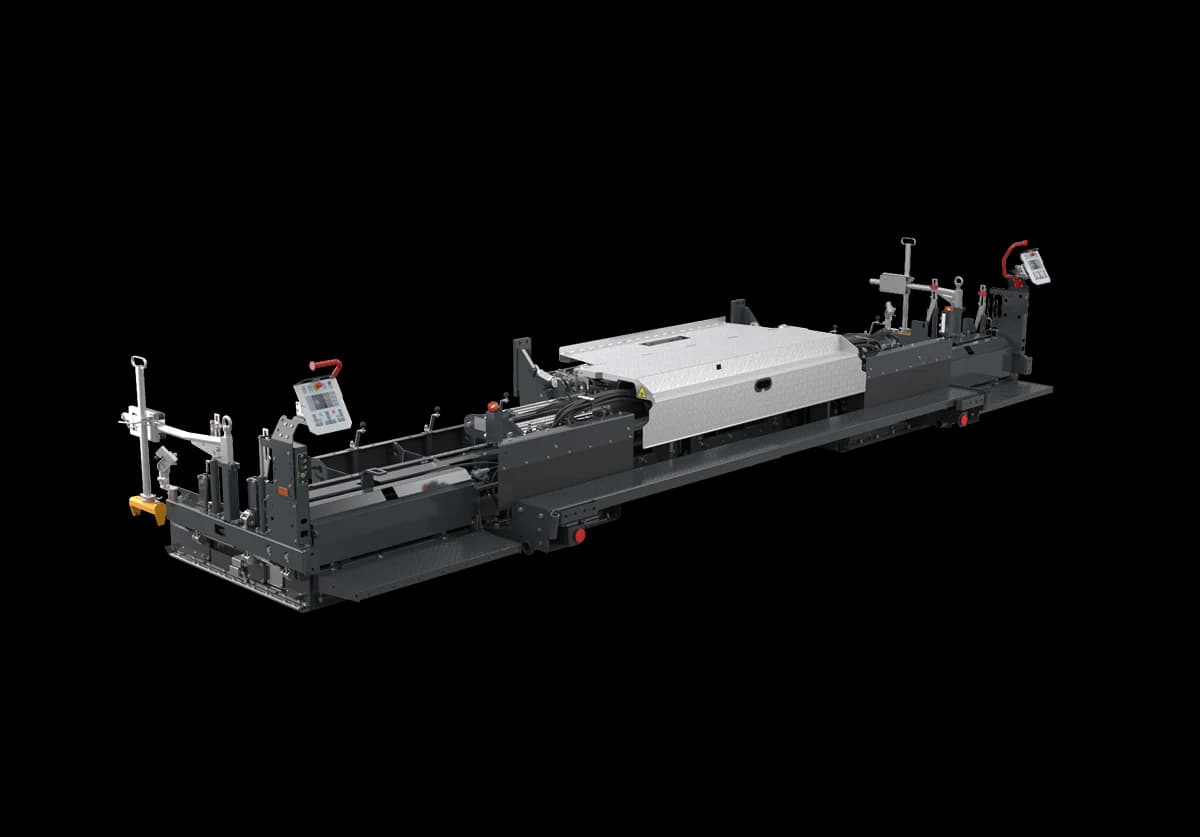

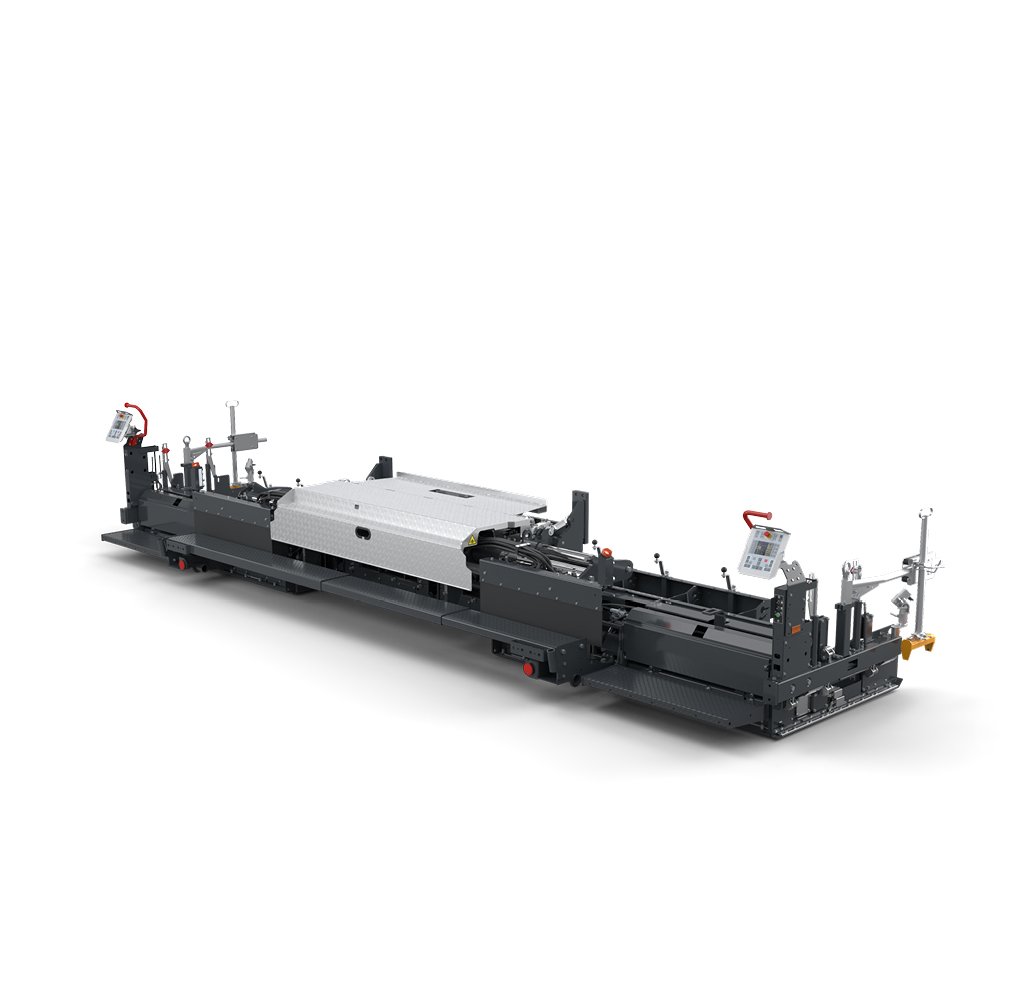

VDTA-V 88
Variomatic Double Tamper Screed with Tamper Stroke Adjustment
For: ABG 8820 | ABG 7820 | ABG 6820
3 m
9 m
2 Tampers
Vibration

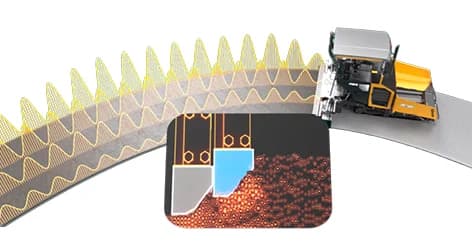

ABG's Innovative High-Compaction Technology
Screed features
Click the points on the screed to see what each feature does.
Continuously Adjustable Pre-Compaction
Specifications
Standard
Electrical Screed Heating
Hydraulic Height Adjustment of Screed Extensions
Quick Coupling System for Screed Extensions
Maintenance-Free Tamper and Vibration Bearings
Integrated Screed Width Measurement with Display in the MCU
Integrated Crown Profile Sensor with Display in the SCU
Continuously Variable Tamper Stroke Adjustment at the Touch of a Button (0,5-10mm)
Crown Profile Adjustment via the SCU
Options
Additional Storage Boxes for End Gates
Foldable End Gates
Handset Crown Control
Basic Screed Reduction Plates - 0,25 m per side
Screed Heating Diagnostics with SCU Display
Heated Manual End Gates
Hydraulic End Gates with extra working Lights and USB Socket
Walkway Variations
Paving Widths
| VDTA-V 88 | - | - | |
|---|---|---|---|
| Basic width | 3 m | - | - |
| Hydraulic Adjusting range | 3.0 - 6.0 m | - | - |
| Max. paving width | 9 m | - | - |
| Min. paving width with reduction kit | 2.5 m | - | - |
| Available screed extension sizes | 0.75, 1.25 m | - | - |
| Depth of base plate | 350 mm | - | - |
Profile Adjustments
Compaction Systems
Heating System
Weights
To watch YouTube videos you are required to accept the Privacy Policy of YouTube and to allow YouTube in your Cookie Preferences.
Screed Configurator App
This tool helps you plan your paver screed configurations and assists technicians with on-site screed assembly. Follow the simple 4-step process to select your paver, choose a screed, configure the paving width, and generate a complete parts list with assembly instructions.
